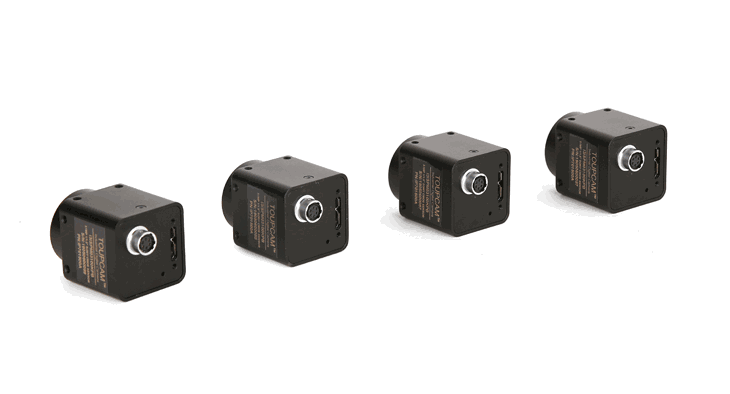

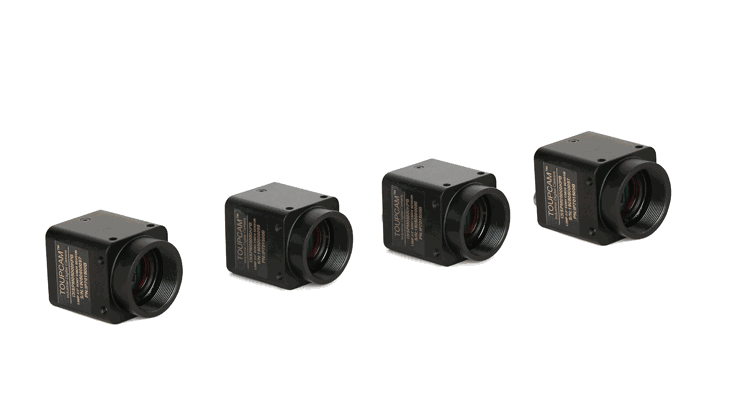

I3ISPM 是工业应用的USB3.0接口彩色相机系列,内置硬件ISP图像处理引擎,确保色彩还原度与相机速度。分辨率覆盖从0.5M-20MP

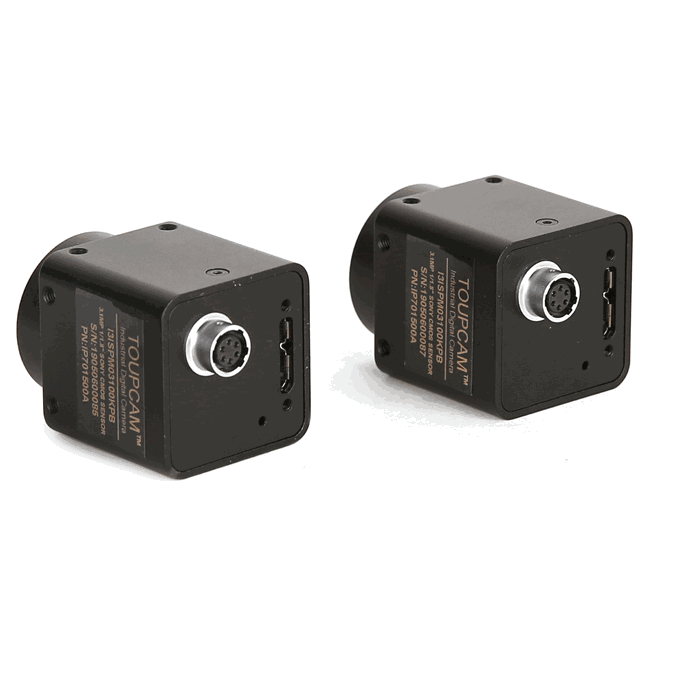

I3ISPM 系列彩色相机，机身小巧，性价比极高。该系列相机采 用USB3.0接口，快速实时传输非压缩图像的图像采集设备，支 持通过客户端软件进行图像数据采集和参数设置（如工作模 式、图像参数调节等），内置硬件ISP图像处理引擎，确保色彩 还原度与相机速度。
IUA 系列相机的基本特性：
- 采用Sony索尼Exmor背照式CMOS传感器,采用双重降噪技术,具有超高的灵敏度以及低噪声；
- 采用USB3.0数据传输接口,兼容USB2.0协议；
- 提供高级视频与图像处理应用软件ToupView,提供Windows/Linux/OSX多平台SDK,支持原生C/C++ , C#/VB.Net , Directshow , Twain API；
- 支持硬触发、软触发、自由运行模式；
- 支持ROI、翻转、位深度切换等功能；
- 支持固件现场升级；
- 符合CE、FCC、RoHS认证。
- 支持硬触发、软触发、自由运行模式；
- 支持ROI、翻转、位深度切换等功能；
- 支持固件现场升级；
- 符合CE、FCC、RoHS认证。
|
型号 参数 |
I3ISPM00500KPA |
|---|---|
|
50万像素 1/1.7” CMOS USB3.0工业相机 |
|
|
相机 |
|
|
传感器型号 |
Sony IMX433LQJ |
|
像元尺寸 |
9.0 µm × 9.0 µm |
|
靶面尺寸 |
1/1.7” |
|
帧率&分辨率 |
166.5fps@812 × 620 |
|
动态范围 |
72.3dB |
|
信噪比 |
50.0dB |
|
灵敏度 |
4910mV |
|
暗电流 |
0.3mV |
|
增益范围 |
1-50倍 |
|
曝光时间范围 |
6µs-15sec |
|
快门模式 |
全局快门 |
|
Binning模式 |
软件2×2，3×3，4×4 |
|
数据接口 |
USB3.0（USB3.1 GEN1） |
|
数字IO (V1) |
1路光耦隔离输入，1路光耦隔离输出，1路非隔离输入，1路非隔离输出 |
|
数据格式 |
8bit / 12bit |
|
一般规范 |
|
|
供电方式 |
USB3.0接口供电 |
|
功耗 |
<3.5W |
|
温度 |
工作温度-10~50℃，储藏温度-30~70℃ |
|
湿度 |
20%-80%无冷凝 |
|
尺寸 |
33mm×33mm×33mm |
|
重量 |
70g |
|
镜头接口 |
C接口 |
|
软件 |
完整的SDK开发包/ToupView |
|
平台和体系结构 |
Win32/WinRT/Linux/macOS/Android；X86/X64/armhf/armel/arm64 |
|
认证 |
CE，FCC |
光谱响应曲线
应用实例
临床生理切片观察
临床生理切片观察

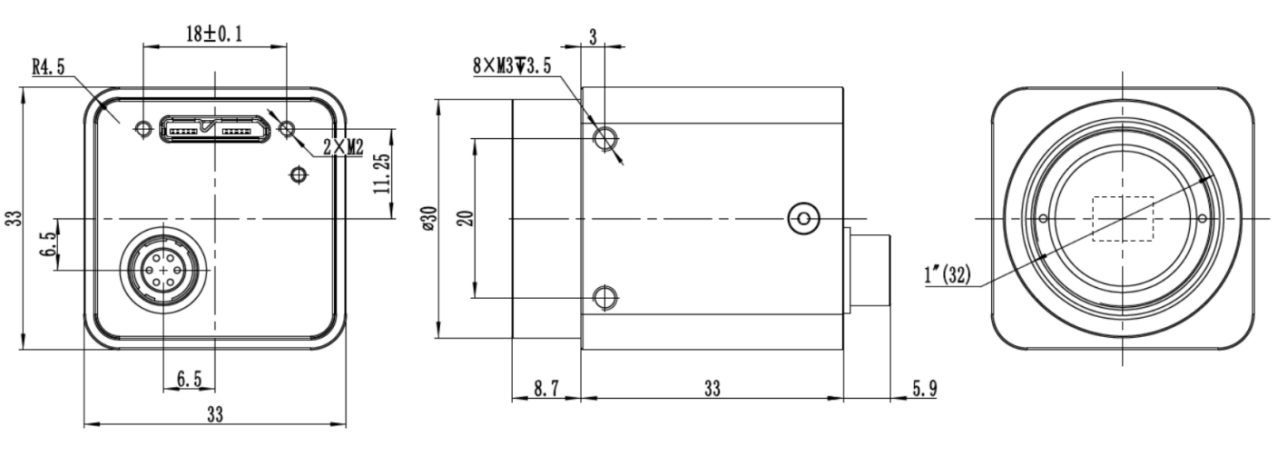

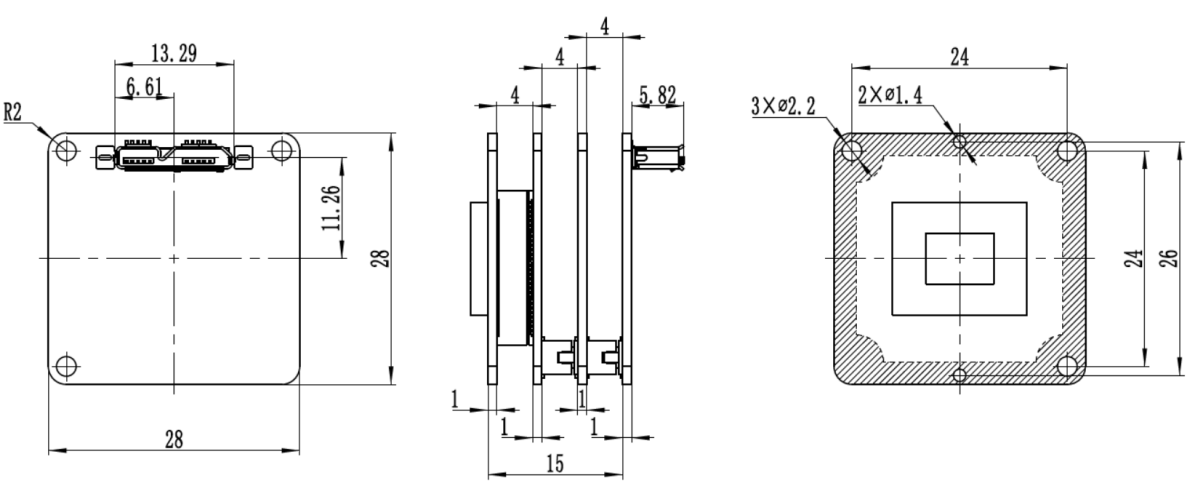

机械尺寸（33mm）

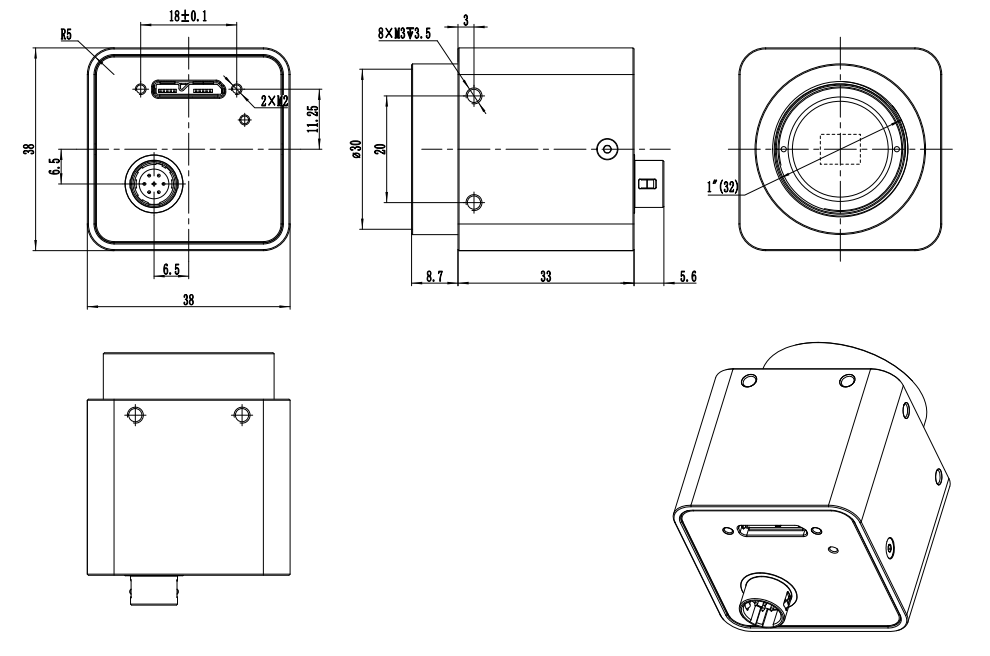

机械尺寸（38mm）
|
序号 |
配件名称 |
数量 |
说明 |
|---|---|---|---|
|
1 |
相机整机 |
1 |
本手册所指相机 |
|
2 |
I/O线缆 |
1 |
6 Pin线缆或延长线缆 |
|
3 |
USB3.0线缆 |
1 |
合适长度的Micro USB3.0线缆 |
|
4 |
镜头（选配） |
1 |
C接口镜头 |
订购代码
传感器型号与尺寸
像素(μm)
G光灵敏度
暗电流
FPS/分辨率
采样平均
曝光时间
外形尺寸
外壳尺寸为33mm x 33mm x 33mm的I3ISPM
I3ISPM00500KPA
IP800500A
0.5M/IMX433LQJ(C,GS)
1/1.7“ (7.31x5.58)
9.0x9.0
4910mv with 1/30s
0.3mv with 1/30s
166.5fps@812×620
1x1
6us~15s
33mm
I3CMOS00500KMA
IM700500A
0.5M/IMX433LLJ(M,GS)
1/1.7“ (7.31x5.58)
9.0x9.0
8100mv with 1/30s
0.30mv with 1/30s
166.5fps@812×620
1x1
6us~15s
33mm
I3ISPM01500KPA
IP801500A
1.5M/IMX273LQR(C,GS)
1/2.9“ (4.97x3.73)
3.45×3.45
1146mv with 1/30s
0.15mv with 1/30s
227.2fps@1440×1080
382.7fps@720×540
1x1
1x1
15us~15s
33mm
I3CMOS01500KMA
IM701500A
1.5M/IMX273LLR(M,GS)
1/2.9“ (4.97x3.73)
3.45×3.45
1830mv with 1/30s
0.19mv with 1/30s
226.5fps@1440×1080
506fps@720×540
1x1
2x2
15us~15s
33mm
I3ISPM02300KPA
IP802300A
2.3M/IMX174LQJ(C,GS)
1/1.2“ (11.25x7.03)
5.86x5.86
1016mv with 1/30s
0.15mv with 1/30s
164.5fps@1920×1200
1x1
15us~15s
33mm
I3CMOS02300KMA
IM702300A
2.3M/IMX174LLJ(M,GS)
1/1.2“ (11.25x7.03)
5.86x5.86
1650mv with 1/30s
0.15mv with 1/30s
164.5fps@1920×1200
1x1
15us~15s
33mm
I3ISPM02300KPB
IP802300B
2.3M/IMX249LQJ(C,GS)
1/1.2“ (11.25x7.03)
5.86x5.86
1016mv with 1/30s
0.15mv with 1/30s
30fps@1920×1200
1x1
42us~15s
33mm
I3CMOS02300KMB
IM702300B
2.3M/IMX249LLJ(M,GS)
1/1.2“ (11.25x7.03)
5.86x5.86
1650mv with 1/30s
0.15mv with 1/30s
30fps@1920×1200
1x1
42us~15s
33mm
I3ISPM02400KPA
2.4M/GMAX4002(C,GS)
1/1.7“ (8.19x4.80)
4.0x4.0
3.26x107e-/((W/m2)·s)
8.3e-/s
155fps@2048×1200
620fps@1024×600
1x1
2x2
55us~15s
33mm
I3CMOS02400KMA
2.4M/GMAX4002(M,GS)
1/1.7“ (8.19x4.80)
4.0x4.0
3.26x107e-/((W/m2)·s)
8.3e-/s
155fps@2048×1200
620fps@1024×600
1x1
2x2
55us~15s
33mm
I3ISPM03100KPA
IP803100A
3.1M/IMX252LQR(C,GS)
1/1.8“ (7.07x5.30)
3.45×3.45
1146mv with 1/30s
0.15mv with 1/30s
115fps@2048×1536
230.3fps@1024×768
1x1
1x1
15us~15s
33mm
I3CMOS03100KMA
IM703100A
3.1M/IMX252LLR(M,GS)
1/1.8“ (7.07x5.30)
3.45×3.45
1830mv with 1/30s
0.15mv with 1/30s
110.6fps@2048×1536
233.8fps@1024×768
1x1
1x1
15us~15s
33mm
I3ISPM03100KPB
IP803100B
3.1M/IMX265LQR(C,GS)
1/1.8“ (7.07x5.30)
3.45×3.45
1146mv with 1/30s
0.15mv with 1/30s
55.4fps@2048×1536
115.1fps@1024×768
1x1
1x1
15us~15s
33mm
I3CMOS03100KMB
IM703100B
3.1M/IMX265LLR(M,GS)
1/1.8“ (7.07x5.30)
3.45×3.45
1830mv with 1/30s
0.15mv with 1/30s
55.4fps@2048×1536
115.1fps@1024×768
1x1
1x1
15us~15s
33mm
I3ISPM03200KPA
3.2M/IMX900AQR(C,GS)
1/3.1“ (4.61x3.46)
2.25x2.25
1162mv/lx/s
0.15mv with 1/30s
53.4fps@2048×1536
126.8fps@1024×768
1x1
1x1
11us~15s
33mm
I3CMOS03200KMA
3.2M/IMX900AMR(C,GS)
1/3.1“ (4.61x3.46)
2.25x2.25
1807mv/lx/s
0.15mv with 1/30s
53.4fps@2048×1536
126.8fps@1024×768
1x1
1x1
11us~15s
33mm
I3CMOS04200KMA
IM704100A
20240313
4.2M/IMX664AAMR1(M,RS)
1/1.8“(7.80x4.41)
2.9×2.9
TBD
90fps@2688×1520
1x1
15us~15s
33mm
I3ISPM04200KPA
IP804100A
20240313
4.2M/IMX664AAQR1(C,RS)
1/1.8“(7.80x4.41)
2.9×2.9
5970mv with 1/30s
0.13mv with 1/30s
88.1fps@2688×1520
116.1fps@1344×760
1x1
2x2
13us~15s
33mm
I3ISPM05000KPA
IP805000A
5.0M/IMX250LQR(C,GS)
2/3“ (8.45x7.07)
3.45×3.45
1146mv with 1/30s
0.15mv with 1/30s
71.2fps@2448×2048
175.2fps@1224×1024
1x1
1x1
15us~15s
33mm
I3CMOS05000KMA
IM705000A
5.0M/IMX250LLR(M,GS)
2/3“ (8.45x7.07)
3.45×3.45
1830mv with 1/30s
0.15mv with 1/30s
70.9fps@2448×2048
175.2fps@1224×1024
1x1
1x1
15us~15s
33mm
I3ISPM05000KPB
IP805000B
5.0M/IMX264LQR(C,GS)
2/3“ (8.45x7.07)
3.45×3.45
1146mv with 1/30s
0.15mv with 1/30s
35.6fps@2448×1536
87.6fps@1224×1024
1x1
1x1
15us~15s
33mm
I3CMOS05000KMB
IM705000B
5.0M/IMX264LLR(M,GS)
2/3“ (8.45x7.07)
3.45×3.45
1830mv with 1/30s
0.15mv with 1/30s
35.6fps@2448×2048
87.6fps@1224×768
1x1
1x1
15us~15s
33mm
I3CMOS05000KMC
IM705000C
20230725
5.0M/IMX250MZR(M,GS)
2/3“ (8.45x7.07)
Polarsens
3.45×3.45
684mv with 1/30s
0.15mv with 1/30s
35.6fps@2448×2048
87.6fps@1224×768
1x1
1x1
15us~15s
33mm
I3ISPM05100KPA
5.1M/GMAX3405(C,GS)
2/3“ (8.32x6.96)
3.4x3.4
2.36x107e-/((W/m2)·s)
4.4e-/s
71fps@2448×2048
100fps@1224×1024
1x1
2x2
10us~15s
33mm
I3CMOS05100KMA
5.1M/GMAX3405(M,GS)
2/3“ (8.32x6.96)
3.4x3.4
2.36x107e-/((W/m2)·s)
4.4e-/s
71fps@2448×2048
100fps@1224×1024
1x1
2x2
10us~15s
33mm
I3ISPM06300KPA
IP806300A
6.3M/IMX178LQJ(C, RS)
1/1.8“ (7.37x4.92)
2.4x2.4
425mv with 1/30s
0.15mv with 1/30s
58.7fps@3072×2048
59.5fps@1536×1024
1x1
2x2
17us~15s
33mm
I3CMOS06300KMA
IM706300A
6.3M/IMX178LLJ(M, RS)
1/1.8“ (7.37x4.92)
2.4x2.4
760mv with 1/30s
0.15mv with 1/30s
58.7fps@3072×2048
59.5fps@1536×1024
1x1
2x2
17us~15s
33mm
I3ISPM08000KPA
8.0M/IMX546-AAQJ(C,GS)
2/3“ (7.78x7.78)
2.74x2.74
1574mv/lx/s
0.15mv with 1/30s
41fps@2840x2840
118fps@1420x1420
1x1
1x1
30us~15s
33mm
I3CMOS08000KMA
8.0M/IMX546-AAMJ(M,GS)
2/3“ (7.78x7.78)
2.74x2.74
2649mv/lx/s
0.25mv with 1/30s
41fps@2840x2840
118fps@1420x1420
1x1
1x1
30us~15s
33mm
I3ISPM08300KPA
8.3M/IMX678-AAQR1-C(C,GS)
1/1.8“ (7.68x4.32)
2.0x2.0
3541mv/lx/s
0.15mv with 1/30s
45fps@3840x2160
70fps@1920x1080
1x1
2x2
30us~15s
33mm
I3ISPM12000KPA
IP812000A
20240311
12M/IMX226CQJ(C, RS)
1/1.7“(7.52x5.64)
1.85x1.85
3637mv with 1/30s
0.15mv with 1/30s
29.97fps@4064×3046
59.94fps@2048×1080
1x1
2x2
400us~15s
33mm
I3ISPM12000KPB
IP812000B
20240311
12M/IMX676-AACR(C, RS)
1/1.6“(7.07x7.07)
2.0x2.0
280mv with 1/30s
0.1mv with 1/30s
27.7fps@3536×3536
65.8fps@1760×1760
1x1
2x2
13us~15s
33mm
外壳尺寸为38mm x 38mm x 33mm的I3ISPM
I3CMOS01300KMA
IM701300A
20240508
1.3M/GLUX9701BSI(M,UV,RS)
1“(12.49x9.99)
9.76x9.76
2.57x108(e-/((W/m2).s))
QE89%@610nm
40(e-/s/pix)
30fps@1280×1024
30fps@640×512
1x1
2x2
63us~60s
38mm
I3ISPM01700KPA
IP801700A
20230731
1.7M/IMX432LQJ(C,GS)
1.1“ (14.4x9.9)
9.0x9.0
4910mv with 1/30s
0.3mv with 1/30s
98.6fps@1600×1100
1x1
6us~15s
38mm
I3CMOS01700KMA
IM701700A
20230731
1.7M/IMX432LLJ(M,GS)
1.1“ (14.4x9.9)
9.0x9.0
8100mv with 1/30s
0.3mv with 1/30s
98.6fps@1600×1100
1x1
6us~15s
38mm
I3ISPM01700KPB
IP801700B
20230825
1.7M/IMX425LQJ(C,GS)
1.1“ (14.4x9.9)
9.0x9.0
4910mv with 1/30s
0.3mv with 1/30s
210fps@1600×1100
1x1
6us~15s
38mm
I3CMOS01700KMB
IM701700B
20230825
1.7M/IMX425LLJ(M,GS)
1.1“ (14.4x9.9)
9.0x9.0
8100mv with 1/30s
0.3mv with 1/30s
210fps@1600×1100
1x1
6us~15s
38mm
I3ISPM02000KPA
IP802000A
20240313
2.0M/IMX430LQJ(C, GS)
1/1.7“(7.31x5.58)
4.5x4.5
2058mv with 1/30s
0.15mv with 1/30s
132fps@1624×1240
1x1
6us~15s
38mm
I3CMOS02000KMA
IM702000A
20240313
2.0M/IMX430LLJ(M, GS)
1/1.7“(7.31x5.58)
4.5x4.5
3354mv with 1/30s
0.15mv with 1/30s
132fps@1624×1240
1x1
6us~15s
38mm
I3ISPM02800KPA
IP802800A
20230731
2.8M/IMX421LQJ(C,GS)
2/3“ (8.71x6.59)
4.5x4.5
2058mv with 1/30s
0.15mv with 1/30s
121fps@1936×1464
425fps@968×732
1x1
1x1
6us~15s
38mm
I3CMOS02800KMA
IM702800A
20230731
2.8M/IMX421LLJ(M,GS)
2/3“ (8.71x6.59)
4.5x4.5
3354mv with 1/30s
0.15mv with 1/30s
121fps@1936×1464
425fps@968×732
1x1
1x1
6us~15s
38mm
I3ISPM07100KPA
IP807100A
20230731
7.1M/IMX428LQJ(C,GS)
1.1“ (14.4x9.9)
4.5x4.5
2058mv with 1/30s
0.15mv with 1/30s
51.4fps@3200×2200
133.8fps@1584×1100
1x1
1x1
6us~15s
38mm
I3CMOS07100KMA
IM707100A
20230731
7.1M/IMX428LLJ(M,GS)
1.1“ (14.4x9.9)
4.5x4.5
3354mv with 1/30s
0.15mv with 1/30s
51.3fps@3200×2200
133.8fps@1584×1100
1x1
1x1
6us~15s
38mm
I3ISPM12300KPA
IP812300A
20231019
12.3M/IMX304LQR-C(C,GS)
1.1“(14.13x10.35)
3.45×3.45
1146mv with 1/30s
0.15mv with 1/30s
23.4fps@4096x3000
46.3fps@2048x1500
46.3fps@1024x750
1x1
2x2
4x4
30us~15s
38mm
I3CMOS12300KMA
IM712300A
20231019
12.3M/IMX304LLR-C(M,GS)
1.1“(14.13x10.35)
3.45×3.45
1830mv with 1/30s
0.15mv with 1/30s
23.4fps@4096x3000
46.3fps@2048x1500
46.3fps@1024x750
1x1
2x2
4x4
30us~15s
38mm
I3ISPM12500KPA
12.5M/GMAX3412(C,GS)
1.1“ (13.93x10.44)
3.4×3.4
2.36x107e-/((W/m2)·s)
81.6e-/s
30fps@4096x3072
60fps@2048x1536
1x1
2x2
15us~15s
38mm
I3CMOS12500KMA
12.5M/GMAX3412(M,GS)
1.1“ (13.93x10.44)
3.4×3.4
2.36x107e-/((W/m2)·s)
81.6e-/s
30fps@4096x3072
60fps@2048x1536
1x1
2x2
15us~15s
38mm
I3ISPM20400KPA
20.4M/IMX541-AAQJ-C(C,GS)
1.1“ (12.32x12.32)
2.74x2.74
1574mv with 1/30s
0.15mv with 1/30s
17.5fps@4496×4496
64.4fps@2240×2240
64.4fps@1120×1120
1x1
2x2
4x4
30us~15s
38mm
I3CMOS20400KMA
20.4M/IMX541-AAMJ-C(M,GS)
1.1“ (12.32x12.32)
2.74x2.74
2649mv with 1/30s
0.15mv with 1/30s
17.5fps@4496×4496
64.4fps@2240×2240
64.4fps@1120×1120
1x1
2x2
4x4
30us~15s
38mm
