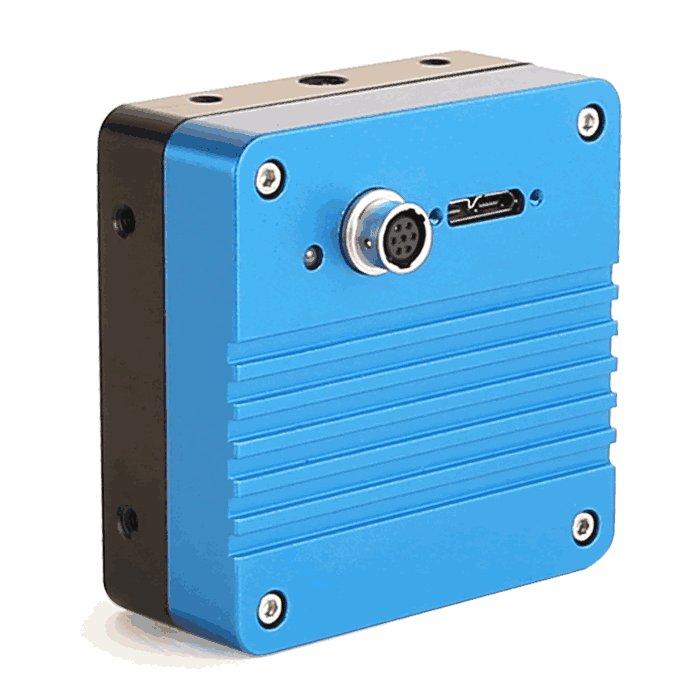

IUA系列机器视觉相机

IUA相机

IUA 系列主要应用在工业和生命科学领域,芯片尺寸横跨 1/2.8~1.1 ,分辨率覆盖从1.7M-45MP。

该系列相机采用 USB3.0接口,快速实时传输非压缩图像的图像采集设备,支持通过客户端软件进行图像数据采集和参数设置(如工作模式、图像参数调节等)。其中的KMA是黑白相机系列,KPA是彩色相机系列,支持外触发,内置硬件ISP图像处理引擎,确保色彩还原度与相机速度。

IUA 系列相机的基本特性:

  • 采用Sony索尼Exmor背照式CMOS传感器,采用双重降噪技术,具有超高的灵敏度以及低噪声;
  • 采用USB3.0数据传输接口,兼容USB2.0协议;
  • 提供高级视频与图像处理应用软件ToupView,提供Windows/Linux/OSX多平台SDK,支持原生C/C++ , C#/VB.Net , Directshow , Twain API;
  • 支持硬触发、软触发、自由运行模式;
  • 支持ROI、翻转、位深度切换等功能;
  • 支持固件现场升级;
  • 符合CE、FCC、RoHS认证。

相关型号

型号

传感器型号与尺寸

像素(μm)

G光灵敏度
暗电流

FPS/分辨率

采样平均

曝光时间

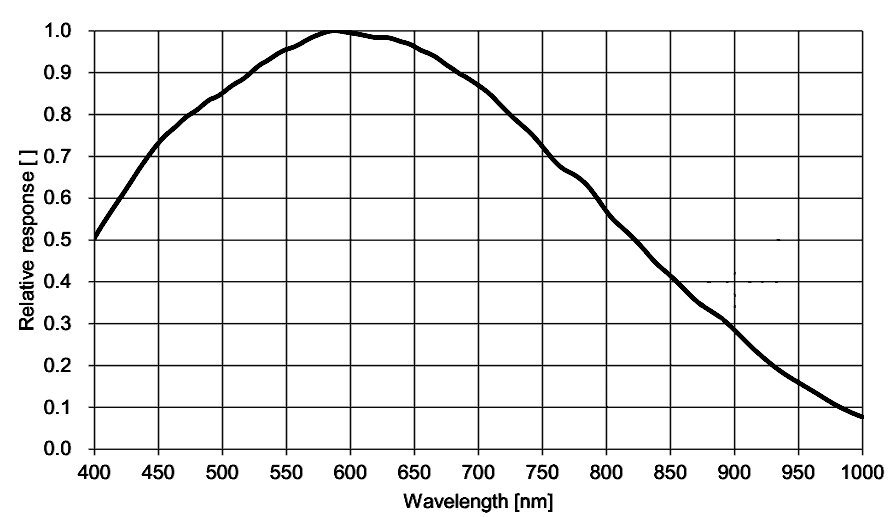

IUA390KMA

0.4M/IMX287LLR(M,GS)
1/2.9“ (4.97x3.73)

6.9x6.9

7320mv with 1/30s
0.76mv with 1/30s

101.5fps@720×540

1x1

6us~15s

IUA503KMA

0.5M/IMX426LLJ(M,GS)
1/1.7“ (7.2x5.58)

9.0x9.0

8100mv with 1/30s
0.3mv with 1/30s

79.8fps@800×620

1x1

6us~15s

IUA503KMB

0.5M/IMX433LLJ(M,GS)
1/1.7“ (7.2x5.58)

9.0x9.0

8100mv with 1/30s
0.3mv with 1/30s

79.8fps@800×620

1x1

6us~15s

IUA1500KMA

1.5M/IMX273LLR(C,GS)
1/2.9“ (4.97x3.73)

3.45×3.45

1830mv with 1/30s
0.15mv with 1/30s

235.5fps@1440×1080
523fps@720×540

1x1
1x1

15us~15s

IUA1500KPA

1.5M/IMX273LQR(C,GS)
1/2.9“ (4.97x3.73)

3.45×3.45

1146mv with 1/30s
0.15mv with 1/30s

235.5fps@1440×1080
523fps@720×540

1x1
1x1

15us~15s

IUA1700KMA

1.7M/IMX432LLJ(M,GS)
1.1“ (14.4x9.9)

9.0x9.0

8100mv with 1/30s
0.3mv with 1/30s

98.6fps@1600×1100

1x1

6us~15s

IUA1700KPA

1.7M/IMX432LQJ(C,GS)
1.1“ (14.4x9.9)

9.0x9.0

4910mv with 1/30s
0.3mv with 1/30s

98.6fps@1600×1100

1x1

6us~15s

IUA1700KMB

1.7M/IMX425LLJ(M,GS)
1.1“ (14.4x9.9)

9.0x9.0

8100mv with 1/30s
0.3mv with 1/30s

210fps@1600×1100

1x1

6us~15s

IUA1700KPB

1.7M/IMX425LQJ(C,GS)
1.1“ (14.4x9.9)

9.0x9.0

4910mv with 1/30s
0.3mv with 1/30s

210fps@1600×1100

1x1

6us~15s

IUA2300KMA

2.3M/IMX174LLJ(M,GS)
1/1.2“ (11.25x7.03)

5.86x5.86

1650mv with 1/30s
0.15mv with 1/30s

164.5fps@1920×1200

1x1

15us~15s

IUA2300KPA

2.3M/IMX174LQJ(C,GS)
1/1.2“ (11.25x7.03)

5.86x5.86

1016mv with 1/30s
0.15mv with 1/30s

164.5fps@1920×1200

1x1

15us~15s

IUA2300KMB

2.3M/IMX249LLJ(M,GS)
1/1.2“ (11.25x7.03)

5.86x5.86

1650mv with 1/30s
0.15mv with 1/30s

30fps@1920×1200

1x1

42us~15s

IUA2300KPB

2.3M/IMX249LQJ(C,GS)
1/1.2“ (11.25x7.03)

5.86x5.86

1016mv with 1/30s
0.15mv with 1/30s

30fps@1920×1200

1x1

42us~15s

IUA2800KMA

2.8M/IMX421LLJ(M,GS)
2/3“ (8.71x6.59)

4.5x4.5

3354mv with 1/30s
0.15mv with 1/30s

121fps@1936×1464
425fps@968×732

1x1
1x1

6us~15s

IUA2800KPA

2.8M/IMX421LQJ(C,GS)
2/3“ (8.71x6.59)

4.5x4.5

2058mv with 1/30s
0.15mv with 1/30s

121fps@1936×1464
425fps@968×732

1x1
1x1

6us~15s

IUA5000KMA

5.0M/IMX264LLR(M,GS)
2/3“ (8.45x7.07)

3.45×3.45

1830mv with 1/30s
0.15mv with 1/30s

35.6fps@2448×2048
87.6fps@1224×1024

1x1
1x1

15us~15s

IUA5000KPA

5.0M/IMX264LQR(C,GS)
2/3“ (8.45x7.07)

3.45×3.45

1146mv with 1/30s
0.15mv with 1/30s

35.6fps@2448×2048
87.6fps@1224×1024

1x1
1x1

15us~15s

IUA5100KMA

5.1M/ IMX547-AAMJ-C(M,GS)
1/1.8“(6.71x5.61)

2.74x2.74

2252mv with 1/30s
0.15mv with 1/30s

63fps@2448×2048
208.4fps@1224×1024

1x1
2x2

30us~15s

IUA5100KPA

5.1M/ IMX547-AAQJ-C(C,GS)
1/1.8“(6.71x5.61)

2.74x2.74

1337mv with 1/30s
0.15mv with 1/30s

63fps@2448×2048
159fps@1224×1024

1x1
2x2

30us~15s

IUA6300KMA

6.3M/IMX178LLJ(M,RS)
1/1.8“ (7.37x4.92)

2.4x2.4

760mv with 1/30s
0.15mv with 1/30s

59.9fps@3072×2048
59.9fps@1536×1024

1x1
2x2

17us~15s

IUA6300KPA

6.3M/IMX178LQJ(C,RS)
1/1.8“ (7.37x4.92)

2.4x2.4

425mv with 1/30s
0.15mv with 1/30s

59.8fps@3072×2048
59.5fps@1536×1024

1x1
2x2

17us~15s

IUA7100KMA

7.1M/IMX428LLJ(M,GS)
1.1“ (14.4x9.9)

4.5x4.5

3354mv with 1/30s
0.15mv with 1/30s

51.3fps@3200×2200
133.8fps@1584×1100

1x1
1x1

6us~15s

IUA7100KPA

7.1M/IMX428LQJ(C,GS)
1.1“ (14.4x9.9)

4.5x4.5

2058mv with 1/30s
0.15mv with 1/30s

51.4fps@3200×2200
133.8fps@1584×1100

1x1
1x1

6us~15s

IUA8300KPA

8.3M/IMX485LQJ-C(C,RS)
1/1.2“ (11.14x6.26)

2.9x2.9

2188mv with 1/30s
0.15mv with 1/30s

45fps@3840x2160
70fps@1920x1080

1x1
1x1

30us~15s

IUA8300KMB

8.3M/IMX585-AAMJ1-C(M,RS)
1/1.2“ (11.14x6.26)

2.9x2.9

9560mv with 1/30s
0.13mv with 1/30s

45fps@3840x2160
70fps@1920x1080

1x1
1x1

30us~15s

IUA8300KPB

8.3M/IMX585-AAQJ1-C(C,RS)
1/1.2“ (11.14x6.26)

2.9x2.9

5970mv with 1/30s
0.13mv with 1/30s

45fps@3840x2160
70fps@1920x1080

1x1
1x1

30us~15s

IUA8300KME

8.3M/IMX678-AAMR1-C(M,GS)
1/1.8“ (7.68x4.32)

2.0x2.0

11288mv with 1/30s
0.15mv with 1/30s

45fps@3840x2160
70fps@1920x1080

1x1
1x1

30us~15s

IUA8300KPE

8.3M/IMX678-AAQR1-C(C,GS)
1/1.8“ (7.68x4.32)

2.0x2.0

3541mv with 1/30s
0.15mv with 1/30s

45fps@3840x2160
70fps@1920x1080

1x1
1x1

30us~15s

IUA12000KPA

12M/IMX676-AACR1-C(C,RS)
1/1.6“ (7.07x7.07)

2.0x2.0

3637mv
0.15mv with 1/30s

27@3536x3536
60@1768x1768

1x1
2x2

30us~15s

IUA12300KMA

12.3M/IMX545-AAMJ-C(M,GS)
1/1.1“(11.22x8.22)

2.74x2.74

2252mv with 1/30s
0.15mv with 1/30s

28.2fps@4096x3000
100.9fps@2048x1500
100.9fps@1024x750

1x1
2x2
4x4

30us~15s

IUA12300KPA

12.3M/IMX545-AAQJ-C(C,RS)
1/1.1“(11.22x8.22)

2.74x2.74

1337mv with 1/30s
0.15mv with 1/30s

28.2fps@4096x3000
100.9fps@2048x1500
100.9fps@1024x750

1x1
2x2
4x4

30us~15s

IUA12300KMB

12.3M/IMX304LLR-C(M,GS)
1.1“(14.13x10.35)

3.45×3.45

1830mv with 1/30s
0.15mv with 1/30s

23.4fps@4096x3000
46.3fps@2048x1500
46.3fps@1024x750

1x1
2x2
4x4

30us~15s

IUA12300KPB

12.3M/IMX304LQR-C(C,RS)
1.1“(14.13x10.35)

3.45×3.45

1146mv with 1/30s
0.15mv with 1/30s

23.4fps@4096x3000
46.3fps@2048x1500
46.3fps@1024x750

1x1
2x2
4x4

30us~15s

IUA20000KMA

20.0M/IMX183CLK(M,RS)
1“ (13.06x8.84)

2.4x2.4

777mv with 1/30s
0.2mv with 1/30s

19.0fps@5440×3684
49.9fps@2736×1824
59.5fps@1824×1216

1x1
2x2
3x3

53us~15s

IUA20000KPA

20.0M/IMX183CQK(C,RS)
1“ (13.06x8.84)

2.4x2.4

462mv with 1/30s
0.2mv with 1/30s

19.0fps@5440×3684
48.8fps@2736×1824
59.4fps@1824×1216

1x1
2x2
3x3

53us~15s

IUA20400KMA

20.4M/IMX541-AAMJ-C(M,GS)
1.1“ (12.32x12.32)

2.74x2.74

2649mv with 1/30s
0.15mv with 1/30s

17.5fps@4496×4496
64.4fps@2240×2240
64.4fps@1120×1120

1x1
2x2
4x4

30us~15s

IUA20400KPA

20.4M/IMX541-AAQJ-C(C,GS)
1.1“ (12.32x12.32)

2.74x2.74

1574mv with 1/30s
0.15mv with 1/30s

17.5fps@4496×4496
64.4fps@2240×2240
64.4fps@1120×1120

1x1
2x2
4x4

30us~15s

IUA24500KMA

24.5M/IMX540-AAMJ-C(M,GS)
1.2“(14.58x12.60)

2.74x2.74

2649mv with 1/30s
0.15mv with 1/30s

14.7fps@5320×4600
54.3fps@2660×2300

1x1
2x2
4x4

30us~15s

IUA24500KPA

24.5M/IMX540-AAQJ-C(C,GS)
1.2“(14.58x12.60)

2.74x2.74

1574mv with 1/30s
0.15mv with 1/30s

14.7fps@5320×4600
54.4fps@2660×2300

1x1
2x2
4x4

30us~15s

IUA25000KMA

25M/GMAX0505(M, GS)
1.1“ (12.8x12.8)

2.5x2.5

QE@500nm: 65.8%
2.4e-/pixel/s

13fps@5120×5120
27fps@2560×2560
54fps@1280×1280

1x1
2x2
4x4

150us~15s

IUA25000KPA

25M/GMAX0505(C, GS)
1.1“ (12.8x12.8)

2.5x2.5

QE@520nm: 58.0%
2.4e-/pixel/s

13fps@5120×5120
27fps@2560×2560
54fps@1280×1280

1x1
2x2
4x4

150us~15s

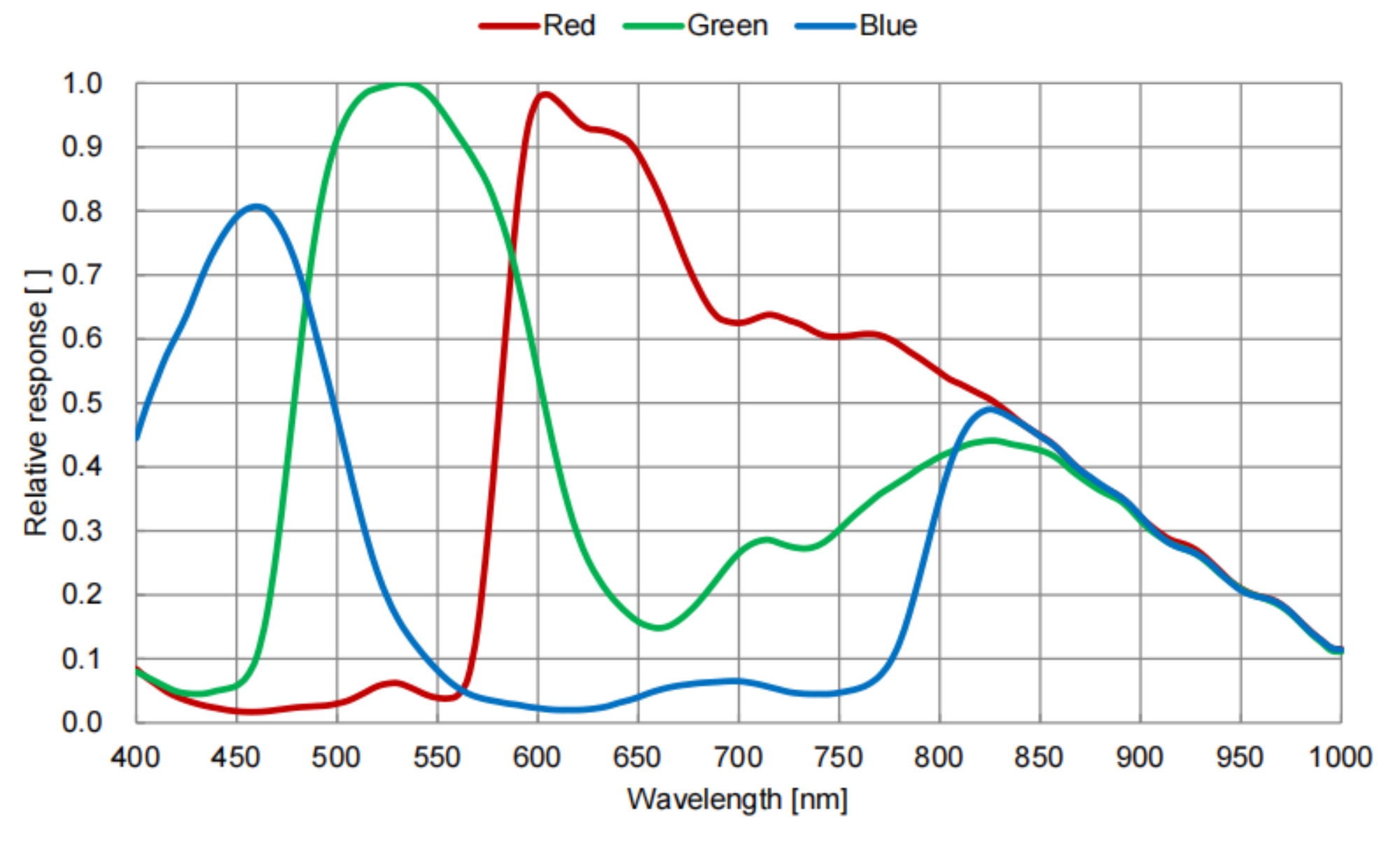

IUA45000KMA

45M/IMX492LLJ-C(M,RS)
4/3“ (19.11x13.00)

2.315x2.315

176mv with 1/30s
0.03mv with 1/30s

8.1@8176x5616
30.0@4080x2808
8.1@7408x5556
33.0@3696x2778
10.4@8176x4320
34.7@4096x2160
62.5@2048x1080
86.5@1360x720

1x1
2x2
1x1
2x2
1x1
2x2
3x3
4x4

100us~15s

IUA-特别波段(UV, NIR,8款)

IUA2100KPA
(NIR)

2.1M/IMX462LQR(C,RS,NIR)
1/2.8“ (5.57x3.13)

2.9x2.9

2376mv with 1/30s
0.15mv with 1/30s

120.3fps@1920x1080

1x1

11us~15s

IUA4100KPA
(NIR)

4.1M/IMX464LQR(C,RS,NIR)
1/1.8“ (7.8x4.41)

2.9x2.9

2376mv with 1/30s
0.15mv with 1/30s

90fps@2688 x 1520

1x1

11us~15s

IUA500KMA
(GPixel UV)

0.5M/GLUX1605BSI(M,UV,RS)
1“(12.8x9.6)

16x16

6.4x108 (e-/((W/m2).s))
QE91%@550nm
50(e-/s/pix)

60fps@800×600
60fps@400×300

1x1
2x2

27us~60s

IUA1300KMA
(GPixel UV)

1.3M/GLUX9701BSI(M,UV,RS)
1“(12.49x9.99)

9.76x9.76

2.57x108 (e-/((W/m2).s))
QE89%@610nm
40(e-/s/pix)

30fps@1280×1024
30fps@640×512

1x1
2x2

63us~60s

IUA4200KMA
(GPixel NIR)

4.2M/GSENSE2020e(M,NIR,RS)
1.2“(13.31x13.31)

6.5x6.5

8.1x108 (e-/((W/m2).s))
QE73%@595nm
13(e-/s/pix)

45fps@2048×2048
45fps@1024×1024

1x1
2x2

21us~60s

IUA4200KMB
(GPixel UV)

4.2M/GSENSE2020BSI(M,UV,RS)
1.2“(13.31x13.31)

6.5x6.5

1.1x108 (e-/((W/m2).s))
QE93.7%@550nm
80(e-/s/pix)

32fps@2048×2048
32fps@1024×1024

1x1
2x2

21us~60s

IUA4200KME
(GPixel UV)

4.2M/GSENSE400BSI(M,UV,RS)
2.0“(22.53x22.53)

11.0x11.0

3.25x108 (e-/((W/m2).s))
QE95.3%@560nm
345(e-/s/pix)

37fps@2048×2048
37fps@1024×1024

1x1
2x2

21us~60s

IUA8000KMA
(GS-UV)

8.0M/IMX487-AAMJ(M,UV,GS)
2/3“ (7.78x7.78)

2.74x2.74

145mv with 1/30s
0.15mv with 1/30s

45fps@2840×2840
198fps@1420×1420

1x1
2x2

30us~15s

详细参数

型号

参数

IUA4200KME

420万像素 2.0” CMOS USB3.0工业相机

相机

传感器型号

GPixel GSENSE400BSI (UV)

像元尺寸

11 µm x 11 µm

靶面尺寸

2.0”

帧率&分辨率

37fps@2048 x 2048、37fps@1024 x 1024

转换增益

HCG: 2.33 / LCG: 19.93 (e-/ADU)

读出噪声

HCG: 3.57 / LCG: 31.26 (e-)

满井电荷

HCG: 46.4 / LCG: 35.8 (ke-)

动态范围

HCG: 68.3 / LCG: 68.1 (dB)

信噪比

HCG: 39.8 / LCG: 49.1 (dB)

灵敏度

3.25x108 (e-/((W/m2).s))

暗电流

345e-/s/pix

增益范围

1-8倍

曝光时间范围

21us-60sec

快门模式

卷帘快门

Binning模式

硬件2x2;软件2x2,3x3,4x4

数据接口

USB3.0(USB3.1 GEN1)

数字IO

1路光耦隔离输入,1路光耦隔离输出,2路非隔离输入输出口

数据格式

8bit / 12bit

一般规范

供电方式

USB3.0接口供电 / DC12V供电

功耗

<2.3W

温度

工作温度-10~50℃,储藏温度-30~70℃

湿度

20%-80%无冷凝

尺寸

68mmx68mmx28.1mm

重量

270g

镜头接口

C接口

软件

完整的SDK开发包/ToupView

平台和体系结构

Win32/WinRT/Linux/macOS/Android;X86/X64/armhf/armel/arm64

认证

CE,FCC

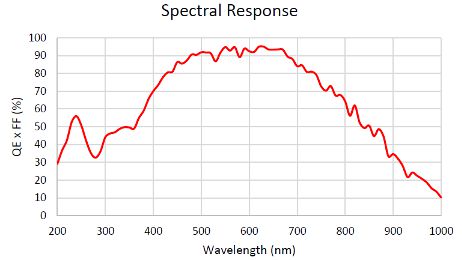

IUA4200KME光谱响应曲线

IUA4200KME光谱响应曲线

IUA电源和IO接口定义

IUA相机接口参数 颜色 管脚 信号 信号描述说明
白色 1 GND 非隔离信号及电源地
红色 2 12V 12V DC电源输入或输出
蓝色 3 OPTO_GND 光耦隔离信号地
黄色 4 DIR_GPIO0 非隔离信号(软件可配置输入/输出)(line2)
黑色 5 DIR_GPIO1 非隔离信号(软件可配置输入/输出)(line3)
绿色 6 OPTO_IN 光耦隔离输入信号(line0)
粉色 7 OPTO_OUT 光耦隔离输出信号(line1)

应用实例

IUA应用实例
临床生理切片观察
IUA应用实例
临床生理切片观察

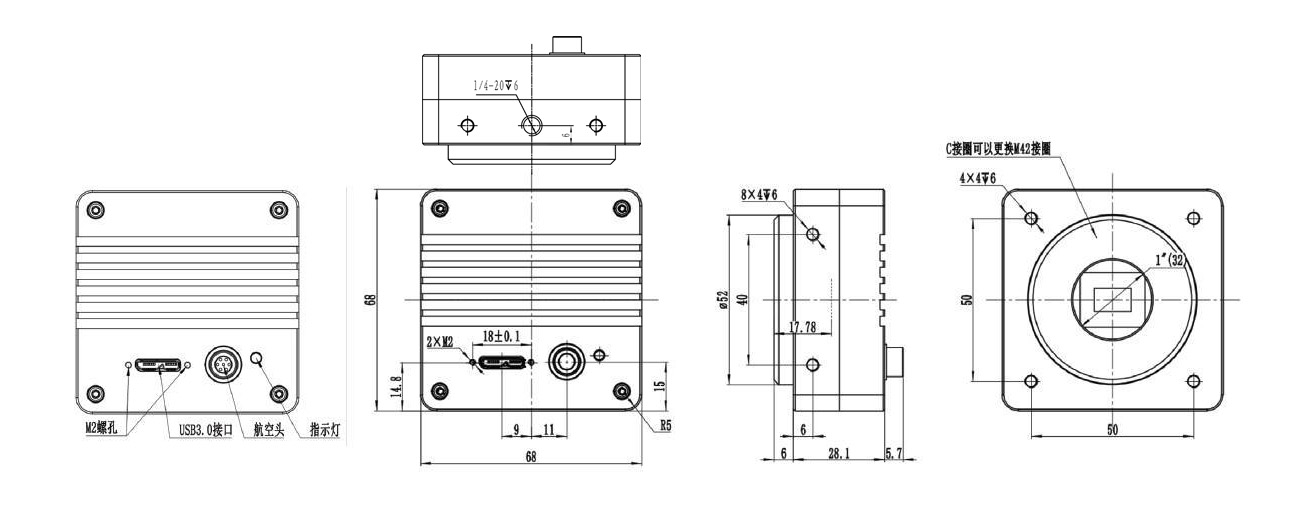

整机尺寸(mm)

IUA相机外形尺寸
IUA相机外形尺寸

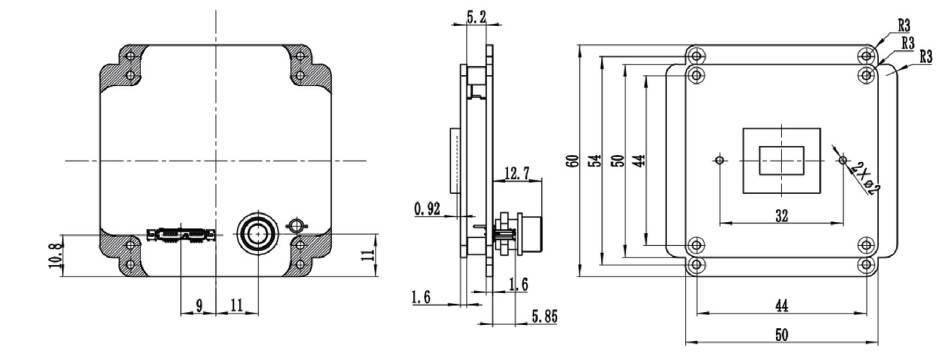

裸板尺寸(mm)

IUA相机外形尺寸

装箱清单

序号

配件名称

数量

说明

1

相机整机

1

本手册所指相机

2

I/O线缆

1

7 Pin线缆或延长线缆

3

USB3.0线缆

1

合适长度的Micro USB3.0线缆

4

镜头(选配)

1

C接口镜头
