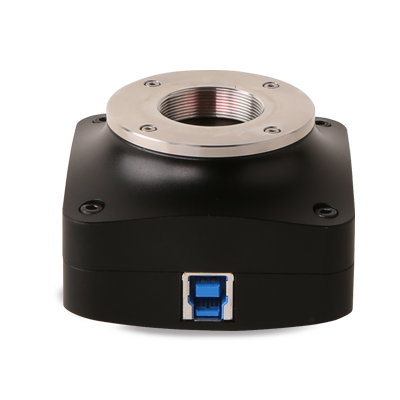

E3ISPM系列显微相机采用 Sony 索尼 Exmor,Exmor R, Exmor RS 背照式 CMOS 传感器， EXmor 系列 CMOS 传感器采用双层降噪技术，具有超高的灵敏度以及超低噪声。
E3ISPM系列显微相机集成了12位的超精细硬件图像信号处理器视频流引擎( Ultra-fine TM HISP VP )，通过该 HISPVP 实现硬件 Demosaic , 调整，自动曝光，增益调节，一键单击白平衡，影像色品调整，饱和度调整，伽马校正，亮度调节，对比度调整， Bayer 格式图像转 RAW 数据供最终以 8/12bit 输出。 HISPVP 将传统的本应由计算机 CPU 处理的转移到了硬件处理，大大提升了相机的传输速度，降低了 CPU 的占用率。
利用 USB3.0 数据传输技术实现数据传输，视频传输快速而而稳定。
E3ISPM系列显微相机分辨率横跨 150 万~ 4500 万，图像传输速度快。
E3ISPM系列显微相机随机提供高级视频与图像处理应用软件 ToupView/ToupLite ；提供 Windows/ Linux/OSX 多平台 SDK ；支持原生 C/C++, C#/VB.Net, Directshow, Twain API 。
E3ISPM系列显微相机的基本特性：
- 采用Sony Exmor CMOS背照式传感器的C接口CMOS USB3.0相机；
- 采用並列A / D转换技术实现超低噪声、低功耗；
- 实时8/12位切换，任意ROI尺寸；
- 锌铝合金精密CNC外壳；
- USB3.0接口确保高传输速率；
- Ultra-Fine硬件ISP视频流引擎确保颜色精准再现与快速(对2100万像素相机，速度达17帧/每秒)；
- 随相机提供高级视频与图像处理应用软件ToupView/ToupLite；
- 提供Windows/Linux/macOS/Android多平台标准SDK；
|
其他硬件参数 |
|
|---|---|
|
光谱响应范围 |
380-650nm (有红外截止滤光片情况下) |
|
白平衡 |
ROI 白平衡/手动Temp-Tint调整 |
|
色彩还原技术 |
Ultra-Fine硬件ISP视频处理引擎 |
|
捕获与控制API |
Windows/Linux/macOS/Android多平台SDK(原生C/C++, C#/VB.NET, Python, Java, DirectShow, Twain等) |
|
位深度 |
8 Bit / 12 Bit |
|
记录方式 |
图像和视频 |
|
致冷方式* |
自然冷却 |
|
相机工作环境 |
|
|
工作温度（摄氏度） |
-10~ 50 |
|
贮存温度（摄氏度） |
-20~ 60 |
|
工作湿度 |
30~80%RH |
|
贮存湿度 |
10~60%RH |
|
供电电源 |
相机通过USB3.0接口供电(兼容USB2.0) |
|
软件运行环境 |
|
|
操作系统 |
Microsoft® Windows® XP/ Vista / 7 / 8 /10 /11(32 & 64 位) |
|
计算机配置 |
CPU:Intel Core 2 2.8GHz 或更高 |
|
内存:2GB或更大 |
|
|
USB接口: USB3.0高速接口或USB2.0接口 |
|
|
显示器:17”或以上 |
|
|
CD-ROM |
|
E3ISPM 系列相机可用于普通明场或弱光或荧光光场显微图像的拍摄。

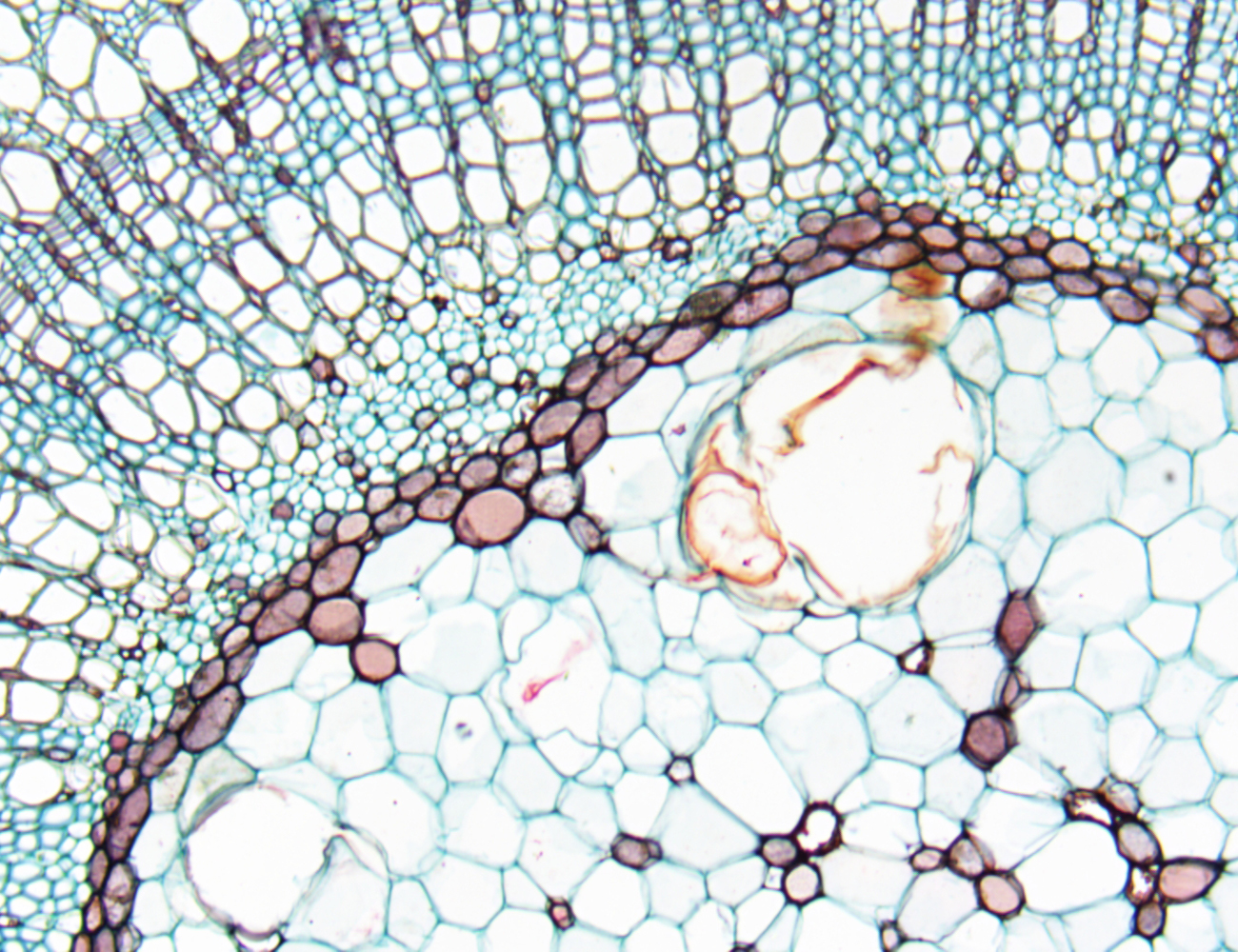

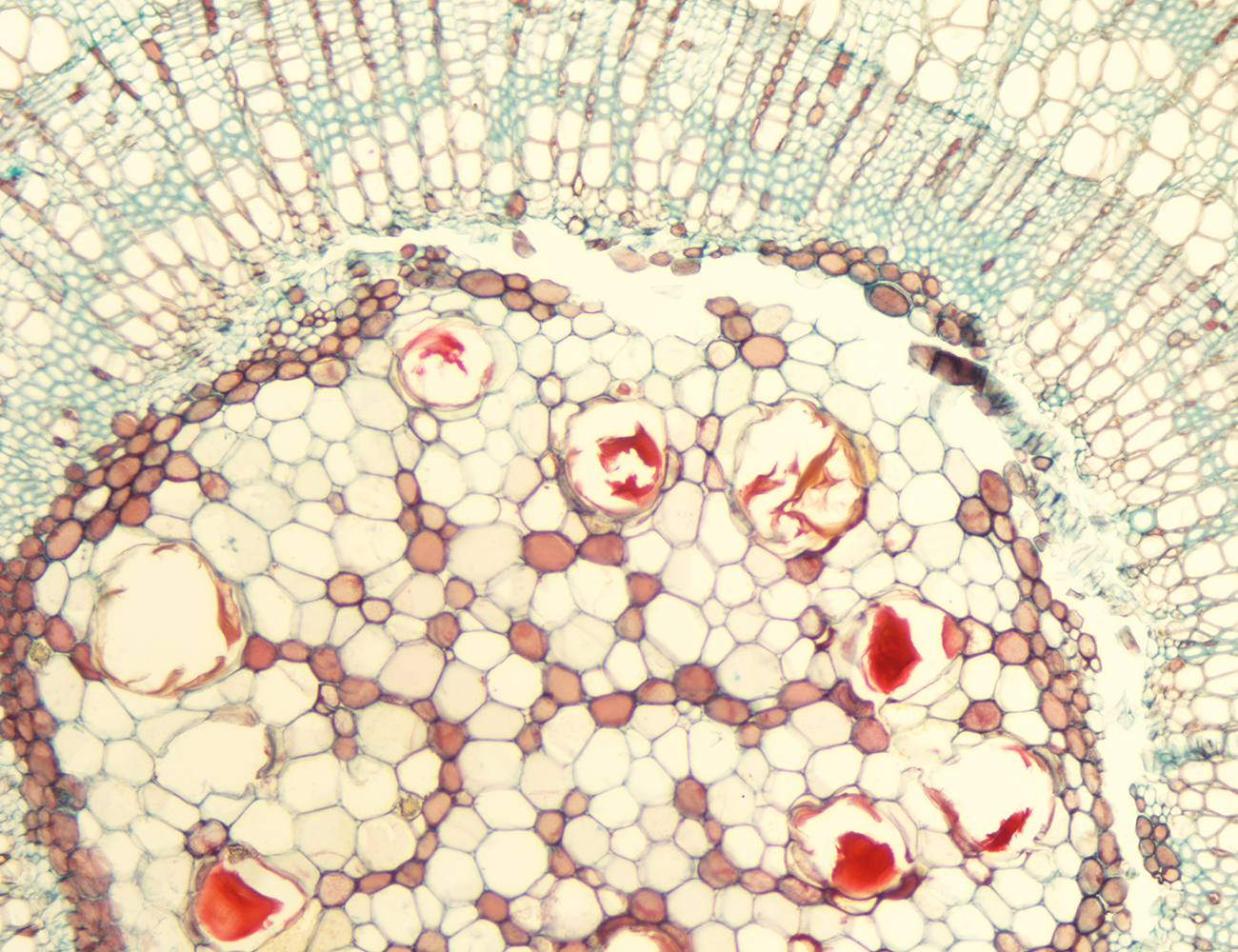

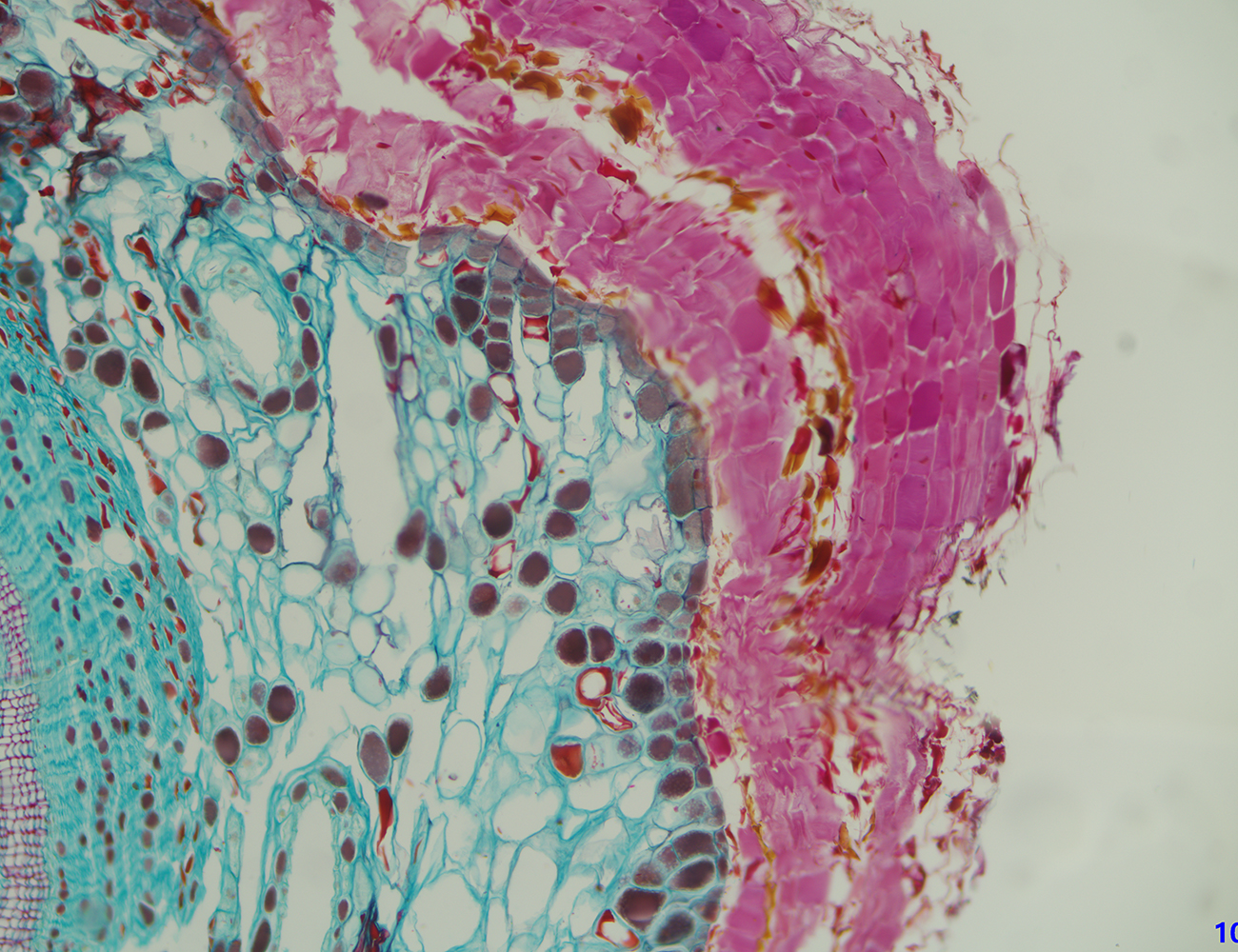

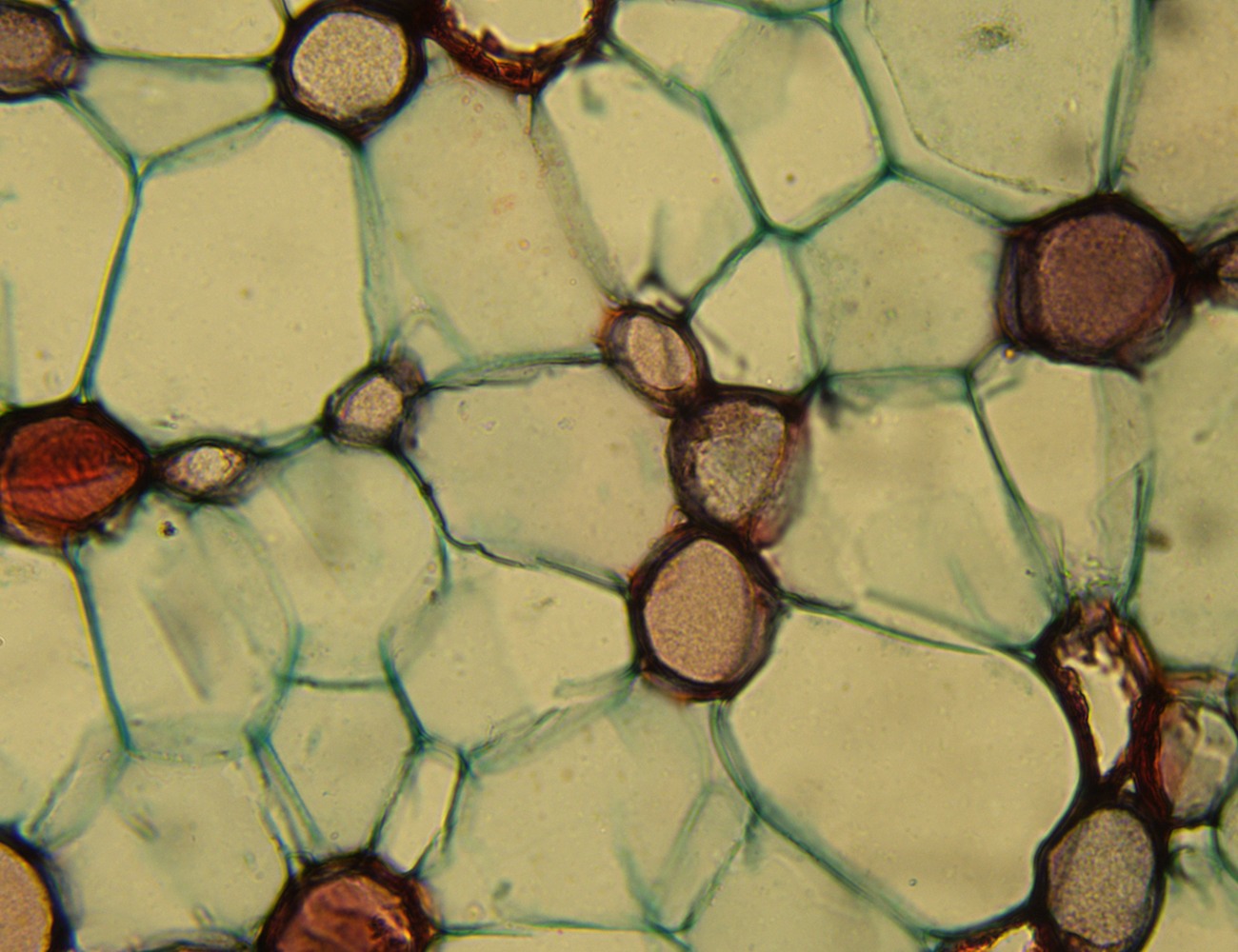

应用实例
外形尺寸

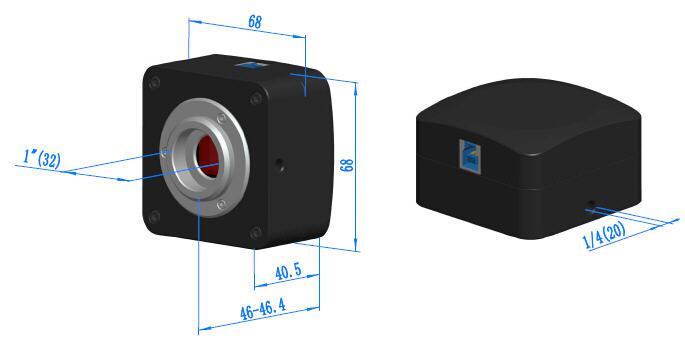

E3ISPM 系列相机外形尺寸示意图。相机壳体由坚硬锌铝合金经CNC机械加工而成，美观大方。相机传感器的前端安装有高品质的IR-CUT或双AR膜，主要起到滤除成像中的红外光波，同时保护相机传感器作用。相比其他品牌相机，图谱光电的相机无运动部件以确保相机坚固可靠、经久耐用，同时不存在由于运动部件抖动而引发的成像模糊。
E3ISPM系列相机外形尺寸示意图
E3ISPM 系列相机装箱清单
|
标准装箱清单 |
|||
|---|---|---|---|
|
A |
包装箱规格：L:52cm W:32cm H:33cm(20pcs, 12~17Kg/纸箱)，上图中未给出 |
||
|
B |
包装盒规格：L:15cm W:15cm H:10cm (0.58~0.6Kg/ box) |
||
|
C |
E3ISPM系列相机 |
||
|
D |
高速USB3.0 A公到B公镀金头数据线/2.0m |
||
|
E |
CD (驱动以及应用软件, Ø12cm) |
||
|
可选附件 |
|||
|
F |
可调焦式目镜筒适配器 |
Dia.23.2mm目镜筒转C接口 (请根据你的相机与显微镜选择其中之一) |
108001/AMA037 108002/AMA050 108003/AMA075 108004/AMA100 |
|
Dia.31.75mm目镜筒转C接口 (请根据你的相机与望远镜选择其中之一) |
108008/ATA037 108009/ATA050 108010/ATA075 108011/ATA100 |
||
|
G |
固定式目镜筒适配器 |
Dia.23.2mm目镜筒转C接口 (请根据你的相机与显微镜选择其中之一) |
108005/FMA037 108006/FMA050 108007/FMA075 108008/FMA100 |
|
Dia.31.75mm目镜筒转C接口 (请根据你的相机与望远镜选择其中之一) |
108011/FTA037 108012/FTA050 108013/FTA075 108014/FTA100 |
||
|
注意： 对F和G选项, 请先确定你的相机型号(C接口，显微镜相机或望远镜相机), 图谱光电的工程师会根据你的应用帮助你选定合适的显微镜或望远镜适配器； |
|||
|
H |
108015(Dia.23.2mm to 30.0mm环)/用于直径30mm目镜筒转接环 |
||
|
I |
108016(Dia.23.2mm to 30.5mm环)/用于直径30.5mm目镜筒转接环 |
||
|
J |
108017(Dia.23.2mm to 31.75mm环)/用于直径31.75目镜筒转接环 |
||
|
K |
测微尺 |
106011/TS-M1(X=0.01mm/100Div.) 106012/TS-M2(X,Y=0.01mm/100Div.) 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.) |
|
订购代码
传感器型号与尺寸
像素(μm)
G光灵敏度
暗电流
FPS/分辨率
采样平均
曝光时间
E3ISPM45000KPA
IP145000A(2021)
45M/IMX294(C)
1.4“ (18.93x13.00)
2.315x2.315
108mv with 1/30s
0.03mv with 1/30s
8.1@8176x5616
30.0@4088x2808
8.1@7408x5556
33.0@4088x2808
10.4@8176x4320
34.7@4096x2160
62.5@2048x1080
86.5@1344x720
1x1(3:2)
2x2(3:2)
1x1(4:3)
2x2(4:3)
1x1(17:9)
2x2(17:9)
3x3(17:9)
4x4(17:9)
0.1ms~15s
E3ISPM45000KPB
IP145000B(2022)
45M/IMX492(C,RS)
1.4“ (18.93x13.00)
2.315x2.315
108mv with 1/30s
0.03mv with 1/30s
8.1@8176x5616(C)
30.0@4080x2808(M)
8.1@7408x5556(C)
33.0@3696x2778(M)
10.4@8176x4320(C)
34.7@4096x2160(M)
62.5@2048x1080(M)
86.5@1344x720(M)
1x1(3:2)
2x2(3:2)
1x1(4:3)
2x2(4:3)
1x1(17:9)
2x2(17:9)
3x3(17:9)
4x4(17:9)
0.1ms~15s
E3ISPM32000KPA
IP132000A(2021)
32M/IMX294(C)
1.15“ (12.96x12.96)
2.315x2.315
108mv with 1/30s
0.03mv with 1/30s
8.1@5600x5600
30.0@2800x2800
30.0@1400x1400
1x1
2x2
4x4
0.1ms~15s
E3ISPM25000KPA
IP125000A(20220808)
25M/IMX511(C)
1/2.3 “ (5.519x5.519)
1.12x1.12
96.3mv with 1/30s
0.1mv with 1/30s
12@4928x4928
46@2464x2464
100@1648x1648
1x1
2x2
3x3
0.013ms~15s
E3ISPM21000KPA
IP121000A(2020)
21M/IMX269(C)
4/3 “(17.4x13.0)
3.3 x3.3
399mv with 1/30s
0.1mv with 1/30s
17@5280x3954
17@3952x3952
56@2640x1976
67@1760x1316
192@584x438
1x1
1x1
2x2
3x3
9x9
0.1ms~15s
E3ISPM20400KPA
IP120400A
20230326
20.4M/IMX541(C,GS)
1.1 “(12.32x12.32)
2.74 x2.74
1574mv with 1/30s
0.15mv with 1/30s
17.5@4496x4496
64.4@2240x2240
64.4@1120x1120
1x1
2x2
4x4
0.03ms~15s
E3ISPM20000KPA
IP120000A
20M/IMX183(C,RS)
1 “(13.06x8.76)
2.4 x2.4
462mv with 1/30s
0.21mv with 1/30s
15@5440x3648
50@2736x1824
60@1824x1216
1x1
2x2
3x3
0.1ms~15s
E3ISPM20000KPD
20M/IMX283(C,RS)
1 “(13.06x8.76)
2.4 x2.4
462mv with 1/30s
0.21mv with 1/30s
15@5440x3648
50@2736x1824
60@1824x1216
1x1
2x2
3x3
0.1ms~15s
E3ISPM20000KPC
IP120000C(2021)
20M/IMX183(C,RS)
1 “(13.06x8.76)
2.4 x2.4
462mv with 1/30s
0.21mv with 1/30s
20@5440x3648
48@2736x1824
58@1824x1216
1x1
2x2
3x3
0.1ms~15s
E3ISPM18000KPA
IP118001A
18M/SONY Special(C)
1/2.2 “(5.86x4.46)
1.2 x1.2
130mv with 1/30s
0.1mv with 1/30s
17@4880x3720
40@2448x1836
50@1728x1296
1x1
2x2
3x3
0.1ms~15s
E3ISPM15600KPA
IP115600A
15.6M/SONY Special (C)
1.1 “(13.0x13.0)
3.3 x3.3
399mv with 1/30s
0.1mv with 1/30s
17@3952x3952
56@1976x1976
67@1316x1316
1x1
2x2
3x3
0.1ms~15s
E3ISPM12400KPA
IP112400A
20230326
12.4M/IMX545(C,GS)
1/1.1 “(11.22x8.22)
2.74 x2.74
1337mv with 1/30s
0.15mv with 1/30s
28.2@4096x3000
100.9@2048x1500
100.9@1024x750
1x1
2x2
4x4
0.03ms~15s
E3ISPM12300KPA
IP112300A
12.3M/IMX304(C,GS)
1.1”(14.13x10.35)
3.45x3.45
1146mv with 1/30s
0.1mv with 1/30s
23.4@4096x3000
46.3@2048x1500
1x1
1x1
0.244ms~15s
E3ISPM12000KPA
IP112000A
12M/IMX226(C)
1/1.7“(7.40x5.55)
1.85x1.85
280mv with 1/30s
0.1mv with 1/30s
25@4000x3000
50@2048x1080
1x1
2x2
0.1ms~15s
E3ISPM12000KPB
IP112000B(2022)
12M/IMX577(C)
1/2“(6.29x4.71)
1.55x1.55
250mv with 1/30s
0.25mv with 1/30s
30@4056x3040
60@2028x1520
120@1014x760
1x1
2x2
4x4
0.1ms~5s
E3ISPM12000KPC
IP112000C(20230717)
12M/IMX676(C)
1/1.6“(7.07x7.07)
2.0x2.0
3637mv with 12 bit converted value(HCG)
0.15mv with 1/30s
27@3536x3536
60@1768x1768
1x1
2x2
0.013ms~15s
E3ISPM09000KPA
IP109000A
9.0M/IMX305(C,GS)
1“ (14.13x7.45)
3.45x3.45
1146mv with 1/30s
0.15mv with 1/30s
34@4096x2160
60@2048x1080
1x1
1x1
0.1ms~15s
E3ISPM09000KPB
IP109000B
9.0M/IMX533(C)
1“ (11.31x11.28)
3.76x3.76
535mv with 1/30s
0.04mv with 1/30s
40@3008x3000
123@1488x1500
186@992x998
1x1
2x2
3x3
0.1ms~15s
E3ISPM08300KPA
IP108300A
8.3M/IMX274(C)
1/2.5”(6.22x3.50)
1.62x1.62
236mv with 1/30s
0.1mv with 1/30s
32@3840x2160
65@1920x1080
1x1
2x2
0.244ms~15s
E3ISPM08300KPB
IP108300B
8.3M/IMX334(C)
1/1.8”(7.68x4.32)
2.0x2.0
505mv with 1/30s
0.1mv with 1/30s
35@3840x2160
60@1920x1080
1x1
2x2
0.02ms~15s
E3ISPM08300KPC
IP108300C
8.3M/IMX485(C)
1/1.2”(11.14x6.26)
2.9x2.9
2188mv with 1/30s
0.15mv with 1/30s
45@3840x2160
70@1920x1080
1x1
2x2
0.02ms~15s
E3ISPM08300KPD
IP108300D(2022)
8.3M/IMX585(C)
1/1.2”(11.14x6.26)
2.9x2.9
5970(mV/lx/s)
0.13mv with 1/30s
45@3840x2160
70@1920x1080
1x1
2x2
0.02ms~15s
E3ISPM08300KPE
IP108300E(2022)
8.3M/IMX678(C)
1/1.8”(7.68x4.32)
2.0x2.0
3541(mV/lx/s)
0.15mv with 1/30s
45@3840x2160
70@1920x1080
1x1
2x2
0.02ms~15s
E3ISPM08000KPA
IP108000A
8.0M/IMX294(C)
1.15 “(13.00x13.00)
4.63 x4.63
419mv with 1/30s
0.12mv with 1/30s
30@2808x2808(14bit)
139@1392x1392
139@696x696
1x1
2x2
4x4
0.1ms~15s
E3ISPM06300KPA
IP106300A
6.3M/IMX178(C,RS)
1/1.8“ (7.37x4.92)
2.4x2.4
425mv with 1/30s
0.15mv with 1/30s
30@3072 x2048
38@1536x 1024
1x1
2x2
0.1ms~15s
E3ISPM06300KPB
IP106300B
6.3M/IMX178(C,RS)
1/1.8“ (7.37x4.92)
2.4x2.4
425mv with 1/30s
0.15mv with 1/30s
59@3072 x2048
59@1536x 1024
1x1
2x2
0.02ms~15s
E3ISPM05100KPA
IP105100A
20230326
5.1M/IMX547(C,GS)
1/1.8“ (6.71x5.61)
2.74x2.74
1337mv with 1/30s
0.15mv with 1/30s
63@2448x2048
208.4@1224x1024
1x1
2x2
0.03ms~15s
E3ISPM05000KPA
IP105000A
5.0M/IMX264(C, GS)
2/3” (8.45x7.07)
3.45x3.45
1146mv with 1/30s
0.15mv with 1/30s
35@2448x2048
50@1224x1024
1x1
1x1
0.1ms~15s
E3ISPM03100KPA
IP103100A
3.1M/IMX265(C, GS)
1/1.8“ (7.07x5.30)
3.45x3.45
1146mv with 1/30s
0.15mv with 1/30s
53@2048x1536
85@1024x768
1x1
1x1
0.1ms~15s
E3ISPM03100KPB
IP103100B
3.1M/IMX123(C)
1/2.8“ (5.12x3.84)
2.5x2.5
600mv with 1/30s
0.15mv with 1/30s
50@2048x1536
50@1920x1080
1x1
1x1
0.1ms~15s
E3ISPM02100KPA
IP102100A(2021)
2.1M/IMX482(C)
1/1.2”(11.14x6.26)
5.8x5.8
8935mv with 1/30s
0.6mv with 1/30s
96@1920x1080
1x1
14us~15s
E3ISPM02000KPA
IP102000A
2M/IMX385(C)
1/2“ (7.2x4.05)
3.75x3.75
2350mv with 1/30s
0.15mv with 1/30s
125@1920x1080
1x1
0.1ms~15s
E3ISPM01500KPA
IP101500A
1.5M/IMX273(C, GS)
1/2.9“ (4.968x3.726)
3.45x3.45
1146mv with 1/30s
0.15mv with 1/30s
164@1440x1080
320@720x540
1x1
2x2
0.1ms~15s
