MAX（Sony｜高分辨率）

产品介绍

基于 Sony Exmor 大面阵 sCMOS（IMX811/411/461/455/410 等），覆盖 24–251 MP 的全画幅/中画幅分辨率。相机采用高效 TEC 深度制冷与闭环温控（典型 ΔT≈40 °C），配合防结雾光学结构，在弱光与长曝光条件下保持低暗电流与稳定黑场。10GigE/USB3.0 多接口与内置缓存（依机型）保障高带宽、长时间连续采集；支持自由运行、软/硬触发与多机同步，适配显微拼接、文物影像、测绘与半导体检测、天文观测等超高分辨率场景。提供跨平台 SDK 与 ToupView/ToupLite，便于系统集成与二次开发。

产品特点

分辨率覆盖 24–251 MP，像元 2.81–5.94 µm（依机型）
大靶面：全画幅/中画幅，M54/M72 等高强度卡口（依机型）
深度 TEC 制冷（典型 ΔT≈40 °C）+ 防结雾结构，支持弱光与长曝光
多接口：10GigE / USB3.0，支持内置缓存与持续采集（依机型）
多位深输出：8 / 10 / 12 / 16-bit（依机型），层次细节更丰富

触发与 I/O：光耦隔离输入/输出 + GPIO；自由运行/软硬触发/多机同步
图像功能：ROI、Binning、方向翻转等（依机型）
软件与 SDK：ToupView/ToupLite；Windows/Linux/macOS 多语言 SDK（C/C++/C#/Python 等）
典型应用：显微拼接、文物与科研影像、遥感测绘、半导体检测、天文成像

咨询报价产品手册

产品型号

全画幅/大像素 sCMOS（24–251 MP）｜深度 TEC 制冷、USB3 / 10GigE，高分辨率科研相机

产品型号	传感器/尺寸	分辨率	像素尺寸	快门方式	帧率	数据接口	动态范围	操作
MAX251AM-10G	IMX811ALR (M,RS) 4.1" (64.84 mm) \| 53.95 mm × 35.97 mm	251M (19200×12800)	2.81 µm × 2.81 µm	卷帘快门	1.5 fps@19200×12800	10GigE	-	查看详情
MAX251AC-10G	IMX811AQR (C,RS) 4.1" (64.84 mm) \| 53.95 mm × 35.97 mm	251M (19200×12800)	2.81 µm × 2.81 µm	卷帘快门	1.5 fps@19200×12800	10GigE	-	查看详情
MAX151AM-10G	IMX411ALR (M,RS) 4.17" (66.65 mm) \| 53.30 mm × 40.01 mm	151M (14176×10640)	3.76 µm × 3.76 µm	卷帘快门	6.1 fps@14176×10640 6.9 fps@7072×5320 20.8 fps@4704×3546 61.9 fps@1568×1178	10GigE	82.5 dB	查看详情
MAX151AC-10G	IMX411AQR (C,RS) 4.17" (66.65 mm) \| 53.30 mm × 40.01 mm	151M (14176×10640)	3.76 µm × 3.76 µm	卷帘快门	6.1 fps@14176×10640 6.9 fps@7072×5320 20.8 fps@4704×3546 61.9 fps@1568×1178	10GigE	84.9 dB	查看详情
MAX102AM-10G	IMX461ALR (M,RS) 3.4" (54.95 mm) \| 43.80 mm × 32.87 mm	102M (11648×8742)	3.76 µm × 3.76 µm	卷帘快门	8.7 fps@11648×8742 8.7 fps@5824×4370 27.8 fps@3872×2912 82.5 fps@1280×970	10GigE	82.8 dB	查看详情
MAX102AC-10G	IMX461AQR (C,RS) 3.4" (54.95 mm) \| 43.80 mm × 32.87 mm	102M (11648×8742)	3.76 µm × 3.76 µm	卷帘快门	8.7 fps@11648×8742 8.7 fps@5824×4370 27.8 fps@3872×2912 82.5 fps@1280×970	10GigE	82.8 dB	查看详情
MAX251AM-U3	IMX811ALR (M,RS) 4.1" (64.84 mm) \| 53.95 mm × 35.97 mm	251M (19200×12800)	2.81 µm × 2.81 µm	卷帘快门	1.5 fps@19200×12800	USB3.0	-	查看详情
MAX251AC-U3	IMX811AQR (C,RS) 4.1" (64.84 mm) \| 53.95 mm × 35.97 mm	251M (19200×12800)	2.81 µm × 2.81 µm	卷帘快门	1.5 fps@19200×12800	USB3.0	-	查看详情
MAX151AM-U3	IMX411ALR (M,RS) 4.17" (66.65 mm) \| 53.30 mm × 40.01 mm	151M (14176×10640)	3.76 µm × 3.76 µm	卷帘快门	2.4 fps@14176×10640 6.9 fps@7072×5320 20.8 fps@4704×3546 61.9 fps@1568×1178	USB3.0	-	查看详情
MAX151AC-U3	IMX411AQR (C,RS) 4.17" (66.65 mm) \| 53.30 mm × 40.01 mm	151M (14176×10640)	3.76 µm × 3.76 µm	卷帘快门	2.4 fps@14176×10640 6.9 fps@7072×5320 20.8 fps@4704×3546 61.9 fps@1568×1178	USB3.0	84.9 dB	查看详情
MAX102AM-U3	IMX461ALR (M,RS) 3.4" (54.95 mm) \| 43.80 mm × 32.87 mm	102M (11648×8742)	3.76 µm × 3.76 µm	卷帘快门	3.5 fps@11648×8742 8.7 fps@5824×4370 27.8 fps@3872×2912 82.5 fps@1280×970	USB3.0	82.8 dB	查看详情
MAX102AC-U3	IMX461AQR (C,RS) 3.4" (54.95 mm) \| 43.80 mm × 32.87 mm	102M (11648×8742)	3.76 µm × 3.76 µm	卷帘快门	3.5 fps@11648×8742 8.7 fps@5824×4370 27.8 fps@3872×2912 82.5 fps@1280×970	USB3.0	82.8 dB	查看详情
MAX62AM	IMX455 (M,RS) 2.7" (43.27 mm) \| 35.98 mm × 23.99 mm	61M (9568×6380)	3.76 µm × 3.76 µm	卷帘快门	6.1 fps@9568×6380 19.1 fps@4784×3190 55.6 fps@3184×2124 191 fps@1040×706	USB3.0	88.3 dB	查看详情
MAX62AC	IMX455 (C,RS) 2.7" (43.27 mm) \| 35.98 mm × 23.99 mm	61M (9568×6380)	3.76 µm × 3.76 µm	卷帘快门	6.1 fps@9568×6380 19.1 fps@4784×3190 55.6 fps@3184×2124 191 fps@1040×706	USB3.0	85.8 dB	查看详情
MAX24AC	IMX410 (C,RS) 2.7" (43.27 mm) \| 36.02 mm × 24.00 mm	24M (6064×4040)	5.94 µm × 5.94 µm	卷帘快门	15.3 fps@6064×4040(14-bit) 41 fps@3024×2012 114 fps@2016×1342	USB3.0	87.3 dB	查看详情

Package Contents #

MAX series (USB3 / 10GigE · deep cooling) standard contents and packing info

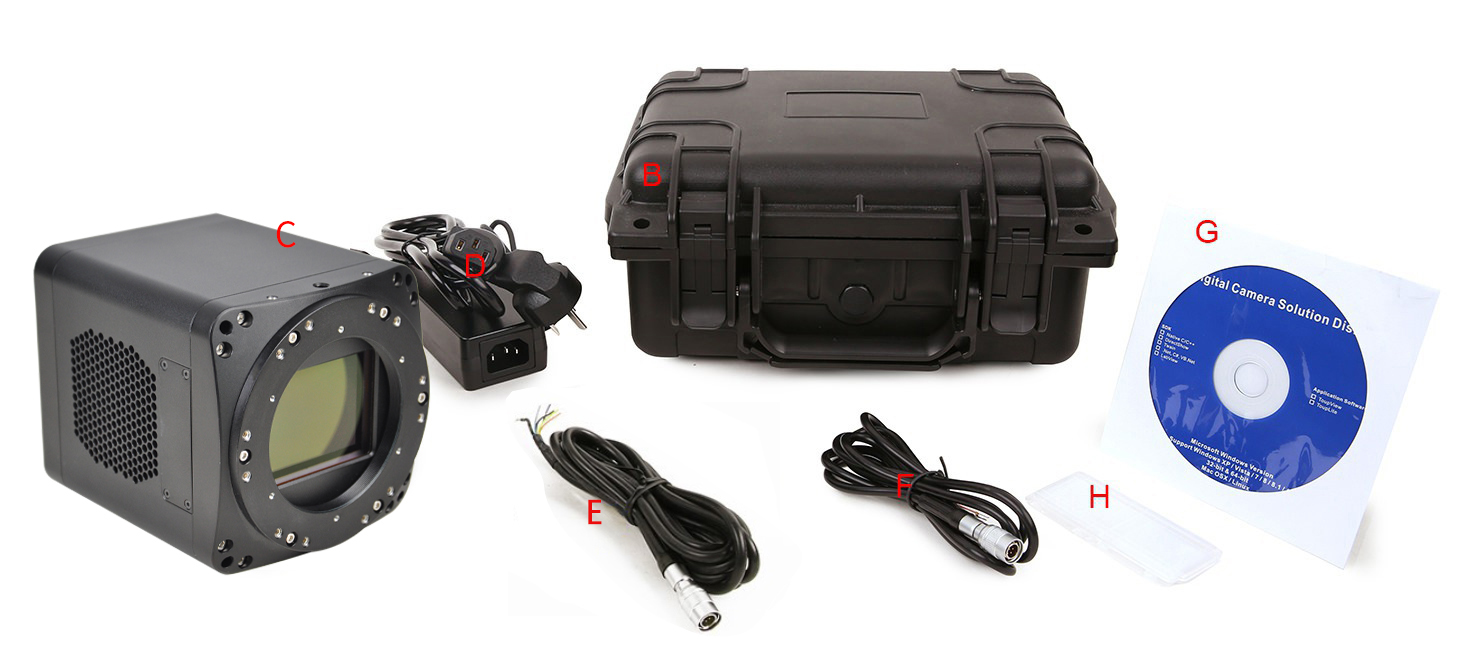

Camera body (MAX series USB3 · cooled)
Power adapter (input AC 100–240 V, 50/60 Hz; output per in-box spec)
I/O cable (7-pin cable or extension)
USB 3.0 data cable
Lens (optional: M72 / M52 / M42 / C mount)

Refer to the in-box list for power/cables; original accessories are recommended.

MAX USB3 cooled packing list

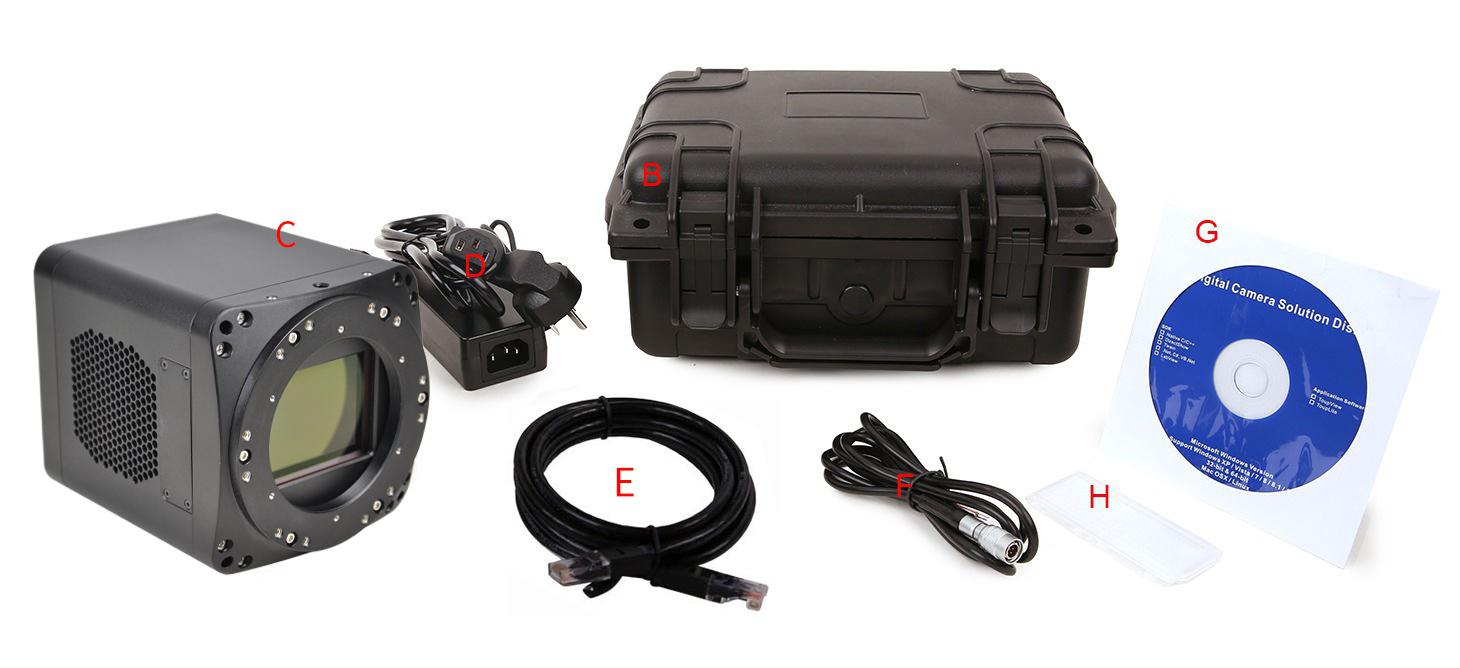

Camera body (MAX series 10GigE · cooled)
Power adapter (input AC 100–240 V, 50/60 Hz; output per in-box spec)
I/O cable (7-pin cable or extension)
10GigE network cable (Cat6A/7, shielded recommended)
Lens (optional: M72 / M52 / M42 / C mount)

Refer to the in-box list for power/cables; original accessories are recommended.

MAX 10GigE cooled packing list

Click the interface buttons above to switch lists

Product Dimensions #

MAX series outline dimensions (USB3 / 10GigE · cooled), mapped by model

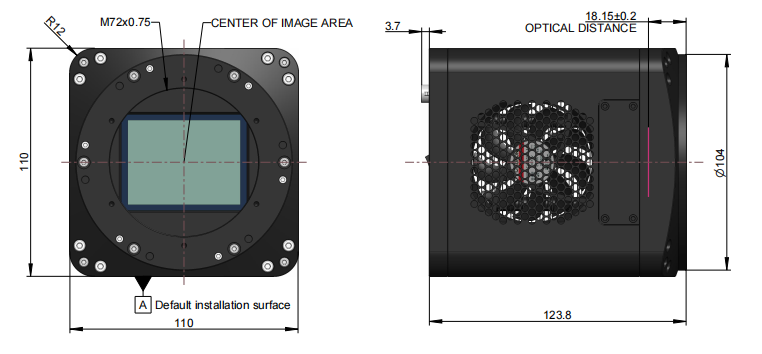

USB3 · MAX251 / MAX151

Cooled Outline drawing

USB3 · MAX251 / MAX151

Cooled Outline drawing

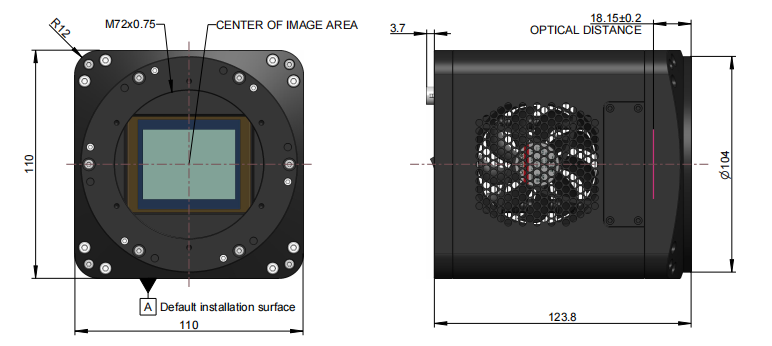

USB3 · MAX102

Cooled Outline drawing

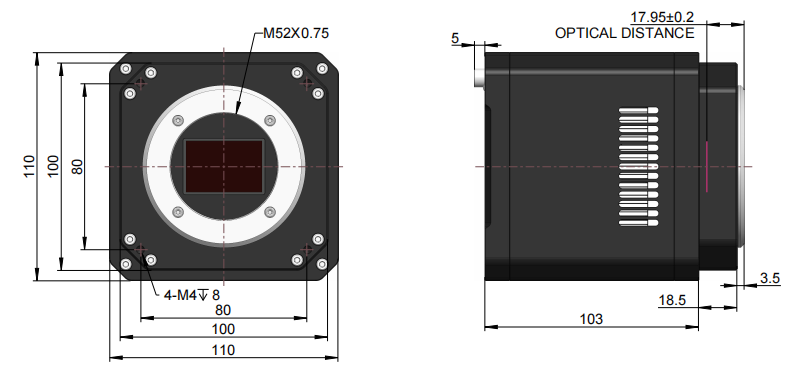

USB3 · MAX62 / MAX24

Cooled Outline drawing

USB3 · MAX62 / MAX24

Cooled Outline drawing

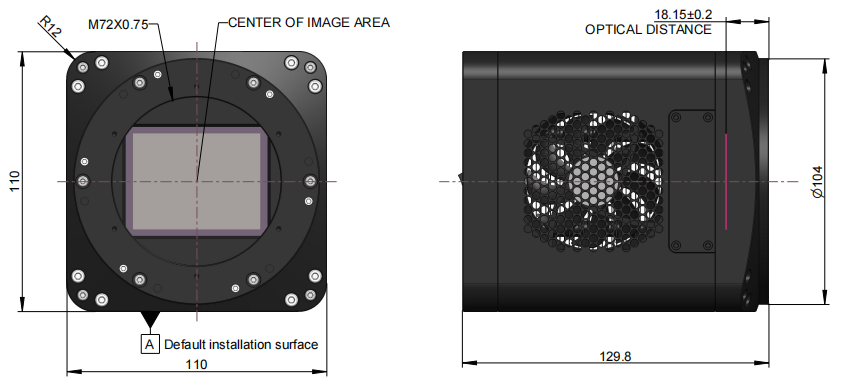

MAX GigE_10G MAX251 / MAX151 outline dimensions

10GigE · MAX251 / MAX151

Cooled Outline drawing

10GigE · MAX251 / MAX151

Cooled Outline drawing

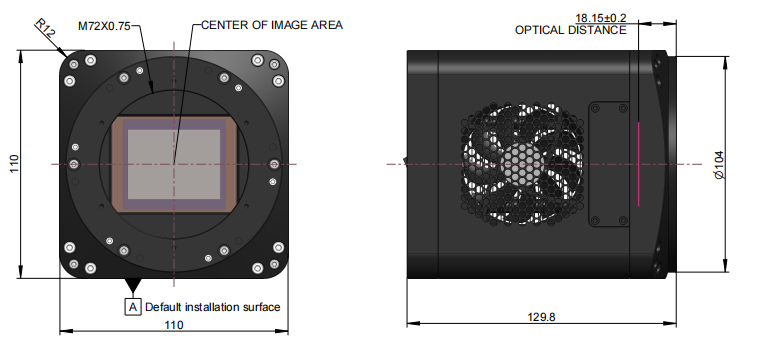

10GigE · MAX102

Cooled Outline drawing

Click images to view full size

Frequently Asked Questions

Learn more about scientific CMOS cameras

A scientific CMOS (sCMOS) camera combines the strengths of CCD and CMOS technology, delivering ultra-low noise, high frame rate, wide dynamic range, and high quantum efficiency—ideal for scientific research and precision measurement.

Ultra-low read noise: sCMOS read noise approaches 1 e⁻, far outperforming traditional CCDs.
High frame rate: Parallel readout architecture supports 100 fps or higher.
Wide dynamic range: Captures bright and dark regions simultaneously with ratios up to tens of thousands to one.
Large field of view and high resolution: Suits high-resolution, wide-field imaging.

Most sCMOS sensors adopt a rolling shutter for high-speed line-by-line readout. Some support pseudo-global shutter via synchronized illumination for tear-free imaging.

They are used widely in biological microscopy, fluorescence imaging, fast object inspection, astronomy, X-ray imaging, cold atom research, and other precision-science scenarios.

EMCCD cameras excel in ultra-low light or long-exposure conditions.

sCMOS delivers greater value for high-resolution, high-speed imaging with low noise.

In-Depth Product Overview

sCMOS Sensor Architecture

Each pixel has its own amplifier and column ADC for parallel readout, enabling high-speed, high-SNR imaging. Dual gain channels and dual ADC designs further expand dynamic range and sensitivity.

Low Noise + Wide Dynamic Range

Typical sCMOS noise is < 2 e⁻ (30 fps) with dynamic range up to 50,000:1—far exceeding traditional CCDs.

Fast Readout & Versatility

Parallel readout supports >100 fps for capturing fast events such as cell motion, fluorescence lifetime studies, and plasma dynamics.

Low-Light Performance

Back-illuminated sCMOS sensors achieve >95% QE from UV to NIR, with low fixed-pattern noise and cooling down to −30 °C for astronomy and other needs.

Application Scenarios & System Value

Ideal for fluorescence microscopy, astronomy, cold atom research, X-ray imaging, materials inspection, and industrial microscopy—delivering high sensitivity, precision, and adaptability.
